TBI MOTION End Cap Return High Speed Ball Screw DFS Series

PRODUCT CATEGORIES

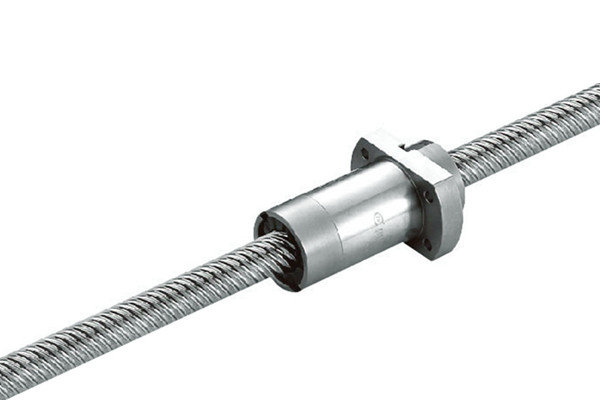

TBI MOTION Ball Screw DFS Series is End Cap Return High Speed Series

TBI MOTION Ball Screw DFS Series
Application

For high speed application, CNC milling, precision application, factory automation and medical industry.

Feature
  • End cap circulate design, high speed, high Dm-N rating with low noise design
  • Unique circulate high lead design to ensure smoothness running performance.
  • Patent seal system, excellent dust proof ability
  • Variety of selection in diameter and leads
  • Zero backlash, high stiffness.

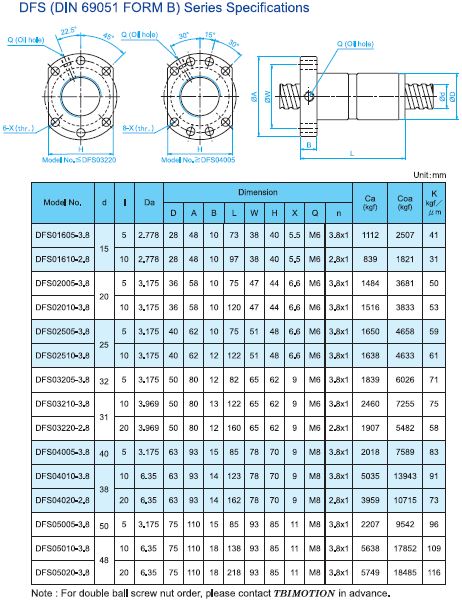

Dimensional drawing
TBI MOTION Ball Screw High load and speed DFS Series
