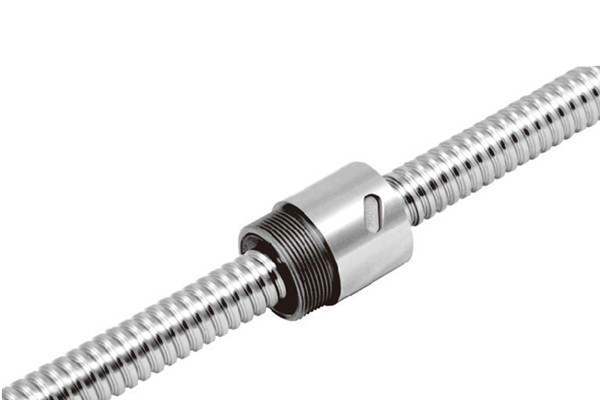

TBI MOTION Ball Screw BSH Cylindrical Series Ball Screw

TBI BSH BALL SCREW CHINA SUPPLIER

APPLICATION AREAS OF TBI BSH BALL SCREW

3D printers, stepper motor ,industrial machinery Printing, paper-processing, automatic machines, textiles ,electronic machinery Robot, measuring instruments, medical equipment, X-Y table,factory automation equipment ,transport machinery Material handling equipment, nuclear reactor actuator,etc.

Feature

Flangeless space saving
Zero backlash, high stiffness.
BSH type can be interchange with different according to customer’s needs.
Large stock
Quality assurance
Price advantage
Good service

THE MODEL NO OF BSH BALL SCREW:

BSHR0082.5-2.5,BSHR01002-3.5,BSHR01004-2.5,BSHR01204-3.5,BSHR01205-3.5,BSHR01404-3,BSHR01604-3,BSHR01605-3,BSHR01610-2,BSHR02005-3,BSHR02505-4,BSHR02510-4 ball screw

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

Welcome to consult: TBI BallScrew BSH 3D Printer Ball Screw

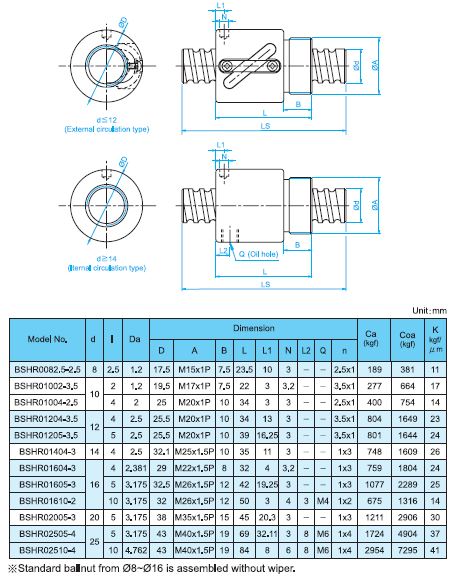

Dimensional drawing
