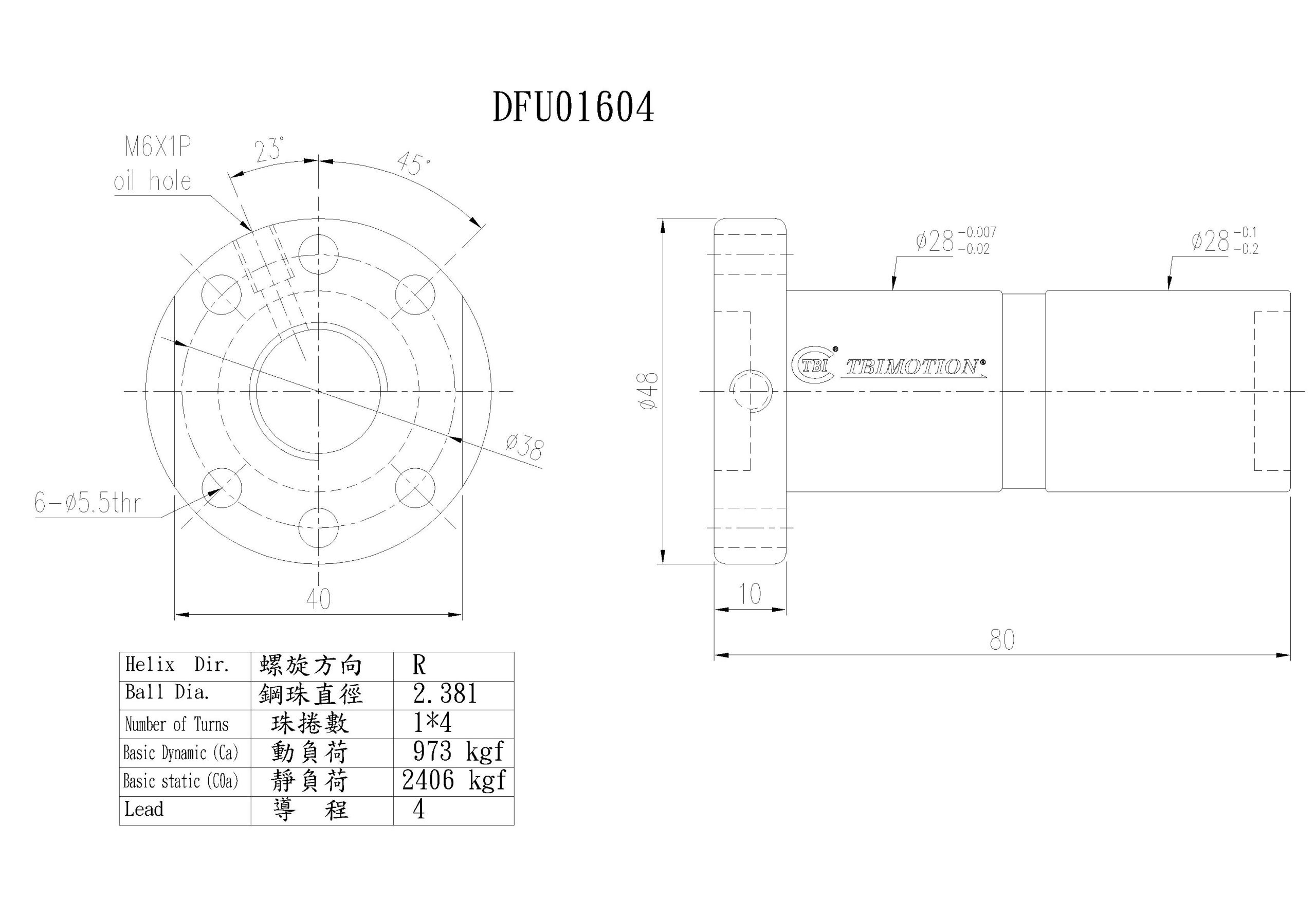

TBI DFU1604 BALLSCREW WITH BALL NUT 4MM LEAD DFU01604-4

TBI Ball screw is a mechanical linear actuator that translates rotational motion to linear motion with littlce friction, A threaded shaft provides a helical raceway for ball bearings which act as a precision screws, As well as being able to apply or withstand high thrust loads, they can do so with min internal friction, and they are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. They ball assembly acts as the nut while the threaded shaft is the screw, In contrast to convessary leadscrews, ball screws tend to be rather bulky, Due to the need to have a mechanism to re-circulate the balls.

TBI MOTION has very stringent quality control standards covering every production process. With proper lubrication and use, trouble-free operation for an extended period of time is possible.the high efficiency of ball screws is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion. TBI ball screw has high Durability,High Reliability,Smooth Operation,High Rigidity and Preload characteristic.

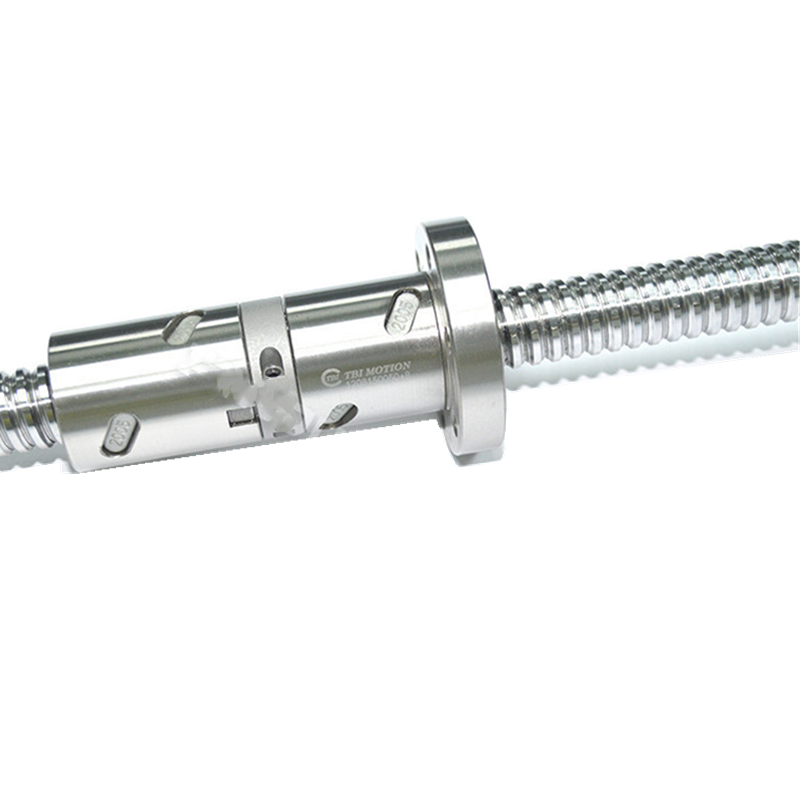

OFU & DFU series delivers high accuracy, no clearance and high rigidity. Internal circulation design saves more space, double nut design provides high load-carrying capacity, high stability and long service life.

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior. We pay more attention to before-sale, in-sale, after -sales service and manufacturer with large stock & short delivery.
