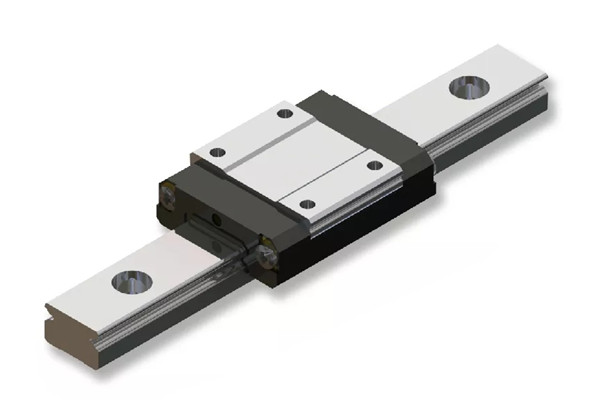

STAF LINEAR GUIDE-MPH SERIES RETAINER TYPE

MPH SERIES RETAINER TYPE

1. Balanced load in 4 directions
2. Retainer Design
3. Smooth Movement
4. Compact Size”
Model : 07/09/12

APPLICATIONS: Semiconductor Industries, Automation equipments, Industrial machinery, 3D Printing ect.

DESCRIPTION

MPH Series – Retainer Type
Balanced load in 4 directions:
With 2 Gothic arc grooves contacting the steel balls at 45°, the MPH linear guide is well balanced with load from all directions, and is very stable in many mounting
orientations.
Retainer:
The retainer prevents the steel balls from falling off.
Smooth Movement:
The lubrication sponge and the retainer together practices high-precision smooth linear movement.
Compact Size:
MPH linear guide is most applicable to occasions with very limited space due to its compact size.

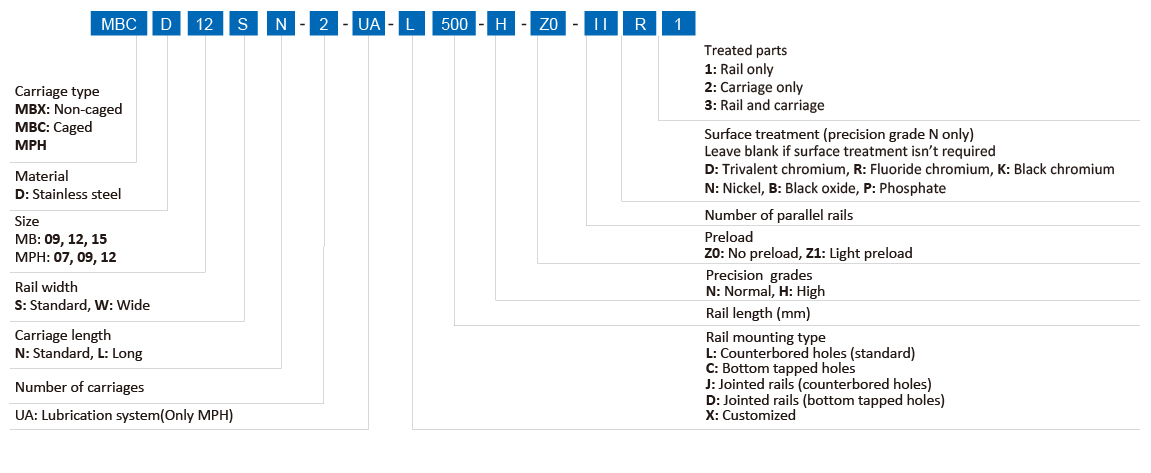

MPH Linear guide Model NO:

MPHX07SN MPHX09SN MPHX09SL MPHX12SN MPHX12SL

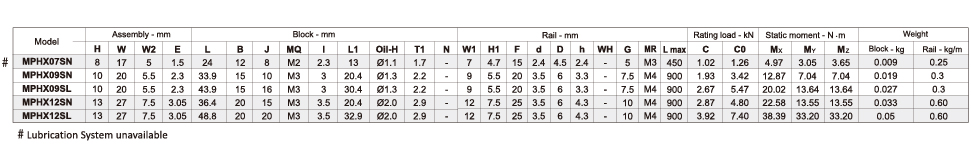

Dimensional drawing
