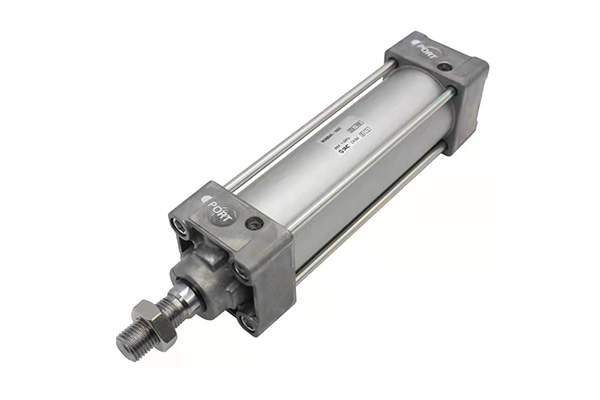

SMC Air Cylinder JMB/JMDB Pneumatic Cylinder

SMC Standard Air Cylinders (2)

SMC Standard Air Cylinders (1)

Key points of JMB/JMDB SMC Compact Cylinder

High qualiy and the stroke is adjustable.
Easy to install.
The seals and boday with high quality materials.

SMC Air Cylinder JMB/JMDB features

Intermediary bore sizes: ø45, ø56, ø67, ø85
Air saving, Space saving
Overall length shortened by 27 mm
Weight reduced by up to 36% (1.56 kg → 1.00 kg)
Air saving: Reduced by up to 29%
Air consumption can be reduced by optimal size selection.
Reduces labor time
Air cushion adjustment is not required due to the non-adjustable air cushion.
With auto switch (JMDB series: JMDB)
A foot type and a flange type have been added. (ø32, ø40, ø50, ø63, ø80, ø100)

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

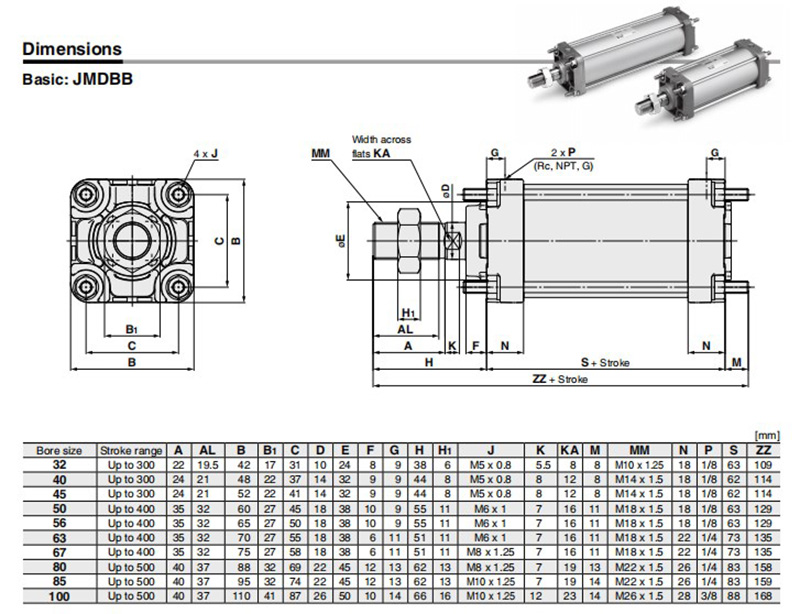

Dimensional drawing

SMC Standard Air Cylinders (3)

SMC Standard Air Cylinders (4)
