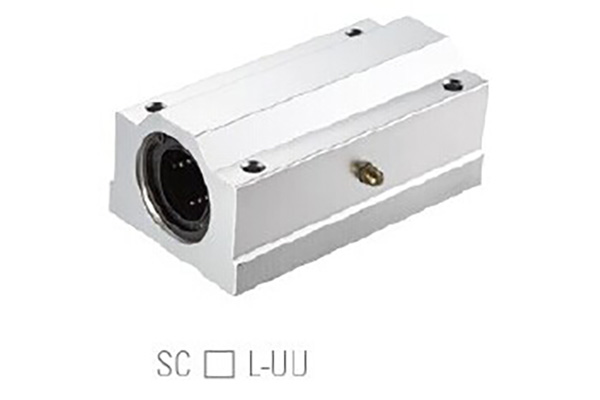

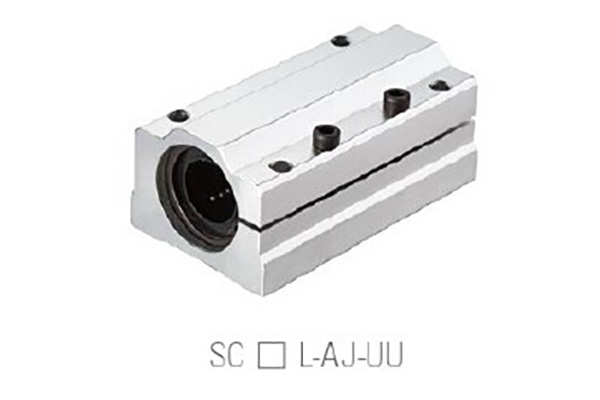

SC…L-UU/SC…L-AJ-UU Linear Motion Slide Units

Part Number

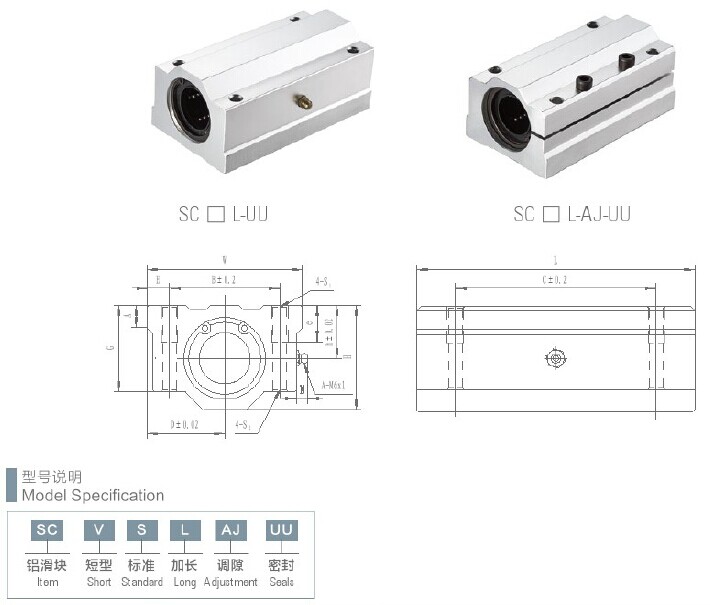

Main dimensions and Mounting dimensions (mm)

Basic Load Rating

Weight(g)

h

D

L

W

H

G

N

A

E

B

C

S1×e

S2

dyn.c

stat.co

SC8L-UU

SC8L-AJ-UU

11

17

58

34

22

18

7

6

5

24

42

M4×8

3.4

431

784

102

SC10L-UU

SC10L-AJ-UU

13

20

68

40

26

21

7

8

6

28

46

M5×12

4.3

588

1100

180

SC12L-UU

SC12L-AJ-UU

15

21

70

42

28

24

6.5

8

5.75

30.5

50

M5×12

4.3

813

1570

250

SC13L-UU

SC13L-AJ-UU

15

22

75

44

30

24.5

6.5

8

5.5

33

50

M5×12

4.3

813

1570

240

SC16L-UU

SC16L-AJ-UU

19

25

85

50

38.5

32.5

6

9

7

36

60

M5×12

4.3

1230

2350

400

SC20L-UU

SC20L-AJ-UU

21

27

96

54

41

35

7

11

7

40

70

M6×12

5.2

1410

2740

570

SC25L-UU

SC25L-AJ-UU

26

38

130

76

51.5

42

4

12

11

54

100

M8×18

7

1610

3140

1200

SC30L-UU

SC30L-AJ-UU

30

39

140

78

59.5

49

5

15

10

58

110

M8×18

7

2450

5490

1480

SC35L-UU

SC35L-AJ-UU

34

45

155

90

68

54

5.5

18

10

70

120

M8×18

7

2650

6270

2200

SC40L-UU

SC40L-AJ-UU

40

51

175

102

78

62

5

20

11

80

140

M10×25

8.7

3430

8040

3200

SC50L-UU

SC50L-AJ-UU

52

61

215

122

102

80

5

25

11

100

160

M12×25

8.7

6080

15900

6700

SC60L-UU

SC60L-AJ-UU

58

66

240

132

114

94

5

30

12

108

180

M12×25

10.7

7000

18000

9290
