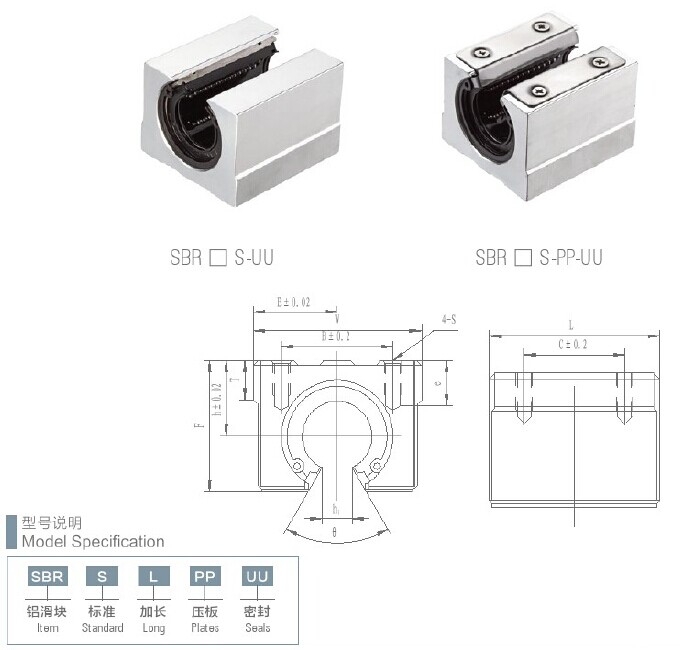

SBR…S-UU/SBR…S-PP-UU Linear Motion Slide Units

Part Number

Shaft
Diameter

Main dimensions and Mounting dimensions (mm)

Basic Load Rating

Weight(g)

h

E

W

L

F

T

h1

θ

B

C

S

e

dyn.c

stat.co

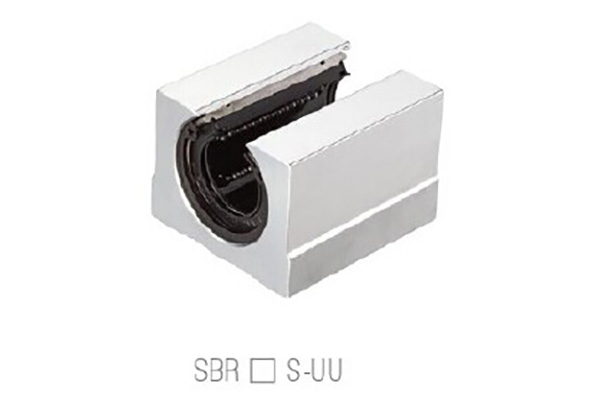

SBR10S-UU

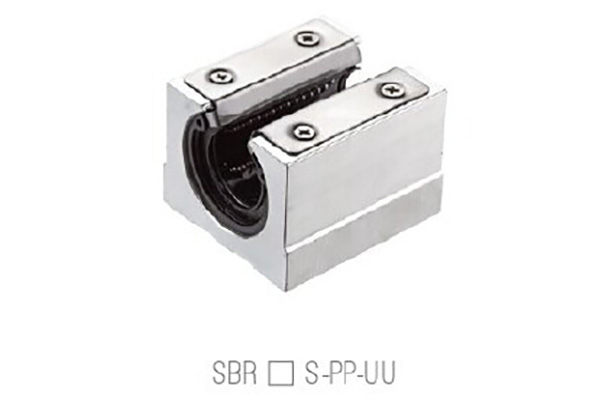

SBR10S-PP-UU

10

15

18

36

32

24

7

6

80°

25

20

M5

10

372

549

65

SBR12S-UU

SBR12S-PP-UU

12

17

20

40

39

27.6

8

8.5

80°

28

26

M5

10

500

770549

100

SBR13S-UU

SBR13S-PP-UU

13

17

20

40

39

27.6

8

8.5

80°

28

26

M5

10

510

784

100

SBR16S-UU

SBR16S-PP-UU

16

20

22.5

45

45

33

9

10

80°

32

30

M5

12

774

1180

150

SBR20S-UU

SBR20S-PP-UU

20

23

24

48

50

39

11

10

60°

35

35

M6

12

882

1370

200

SBR25S-UU

SBR25S-PP-UU

25

27

30

60

65

47

14

11.5

50°

40

40

M6

12

980

1570

450

SBR30S-UU

SBR30S-PP-UU

30

33

35

70

70

56

15

14

50°

50

50

M8

18

1570

2740

630

SBR35S-UU

SBR35S-PP-UU

35

37

40

80

80

63

18

16

50°

55

55

M8

18

1670

3140

920

SBR40S-UU

SBR40S-PP-UU

40

42

45

90

90

72

20

19

50°

65

65

M10

20

2160

4020

1330

SBR50S-UU

SBR50S-PP-UU

50

53

60

120

110

92

25

23

50°

94

80

M10

20

3820

7940

3000
