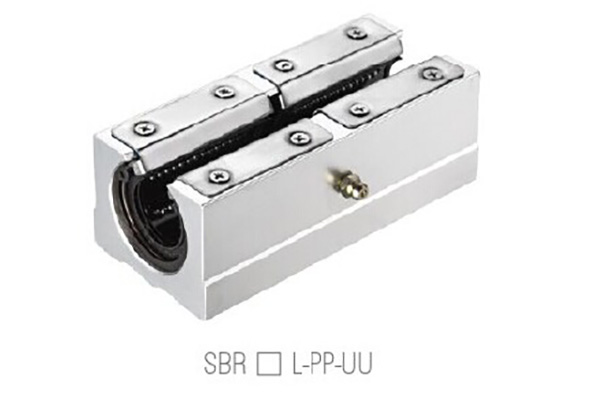

SBR…L-PP-UU Linear Motion Slide Units

Part Number

Shaft
Diameter

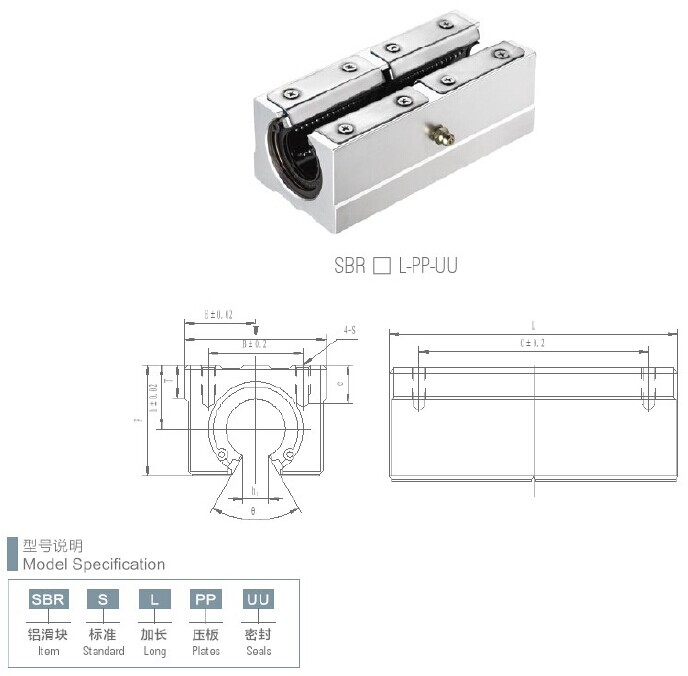

Main dimensions and Mounting dimensions (mm)

Basic Load Rating

Weight(g)

h

E

W

L

F

T

H1

θ

B

C

S

e

dyn.c

stat.co

SBR10L-PP-UU

10

15

18

36

68

24

7

6

80°

25

46

M5

10

774

1020

130

SBR12L-PP-UU

12

17

20

40

75

27.6

8

8.5

80°

28

50

M5

10

1020

1548

200

SBR16L-PP-UU

16

20

22.5

45

85

33

9

10

80°

32

60

M5

12

1548

2360

300

SBR20L-PP-UU

20

23

24

48

96

39

11

10

60°

35

70

M6

12

1764

2740

400

SBR25L-PP-UU

25

27

30

60

130

47

14

11.5

50°

40

100

M6

12

1960

3140

900

SBR30L-PP-UU

30

33

35

70

140

56

15

14

50°

50

110

M8

18

3140

5480

1260

SBR35L-PP-UU

35

37

40

80

160

63

18

16

50°

55

120

M8

18

3440

6280

1800

SBR40L-PP-UU

40

42

45

90

175

72

20

19

50°

65

140

M10

20

4320

8040

2660

SBR50L-PP-UU

50

53

60

120

215

92

25

23

50°

94

160

M12

20

7640

15880

6000
