RYK45 SYNCHRONOUS BELT MODULE

SYNCHRONOUS BELT MODULE CHINA SUPPLIER

APPLICATION AREAS OF SYNCHRONOUS BELT MODULE

Material handling machinery, automotive industry, dispensers, screw machines, welding machines, packaging machinery, textile machinery, etc.

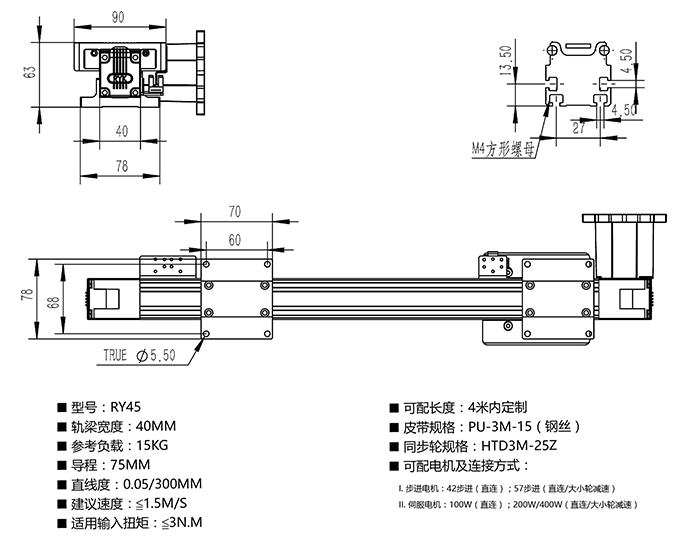

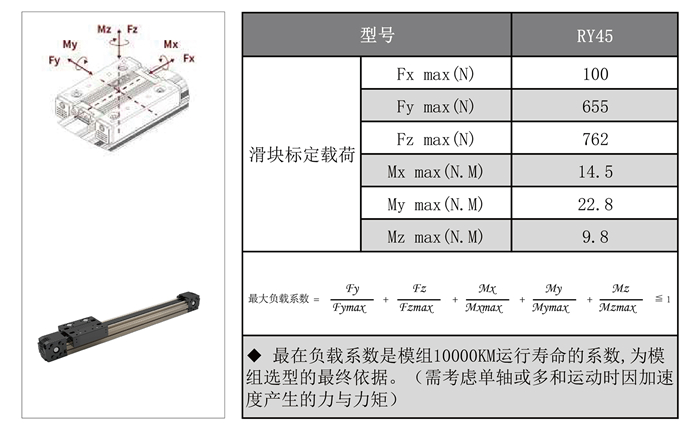

RYK45 SYNCHRONOUS BELT MODULE BASIC

Type: RYK45
Repeat positioning accuracy: ±0.1
Available length: customized within 4 meters
Width of rail beam: 40MM
Belt specification: PU-3M-15 (steel wire)
Reference load:15KG
Synchronous wheel specification: HTD3M-25Z
Lead: 75MM

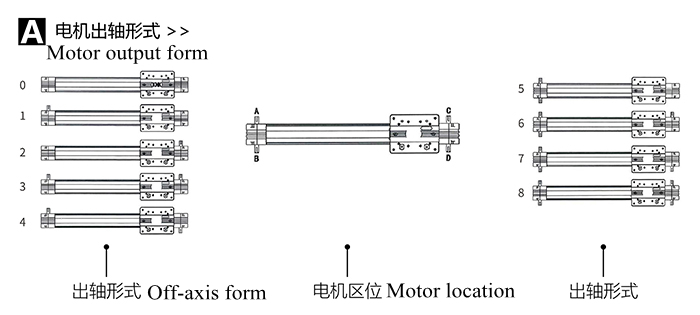

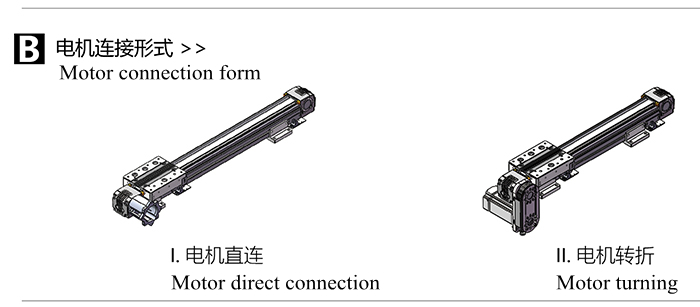

Available motor and connection mode: i. Stepper motor: 42 step (direct connection); 57 Stepping (direct connection/big and small wheel deceleration)
I. servo motor: 100W (direct connection); 200W/400W (direct connection/big and small wheel deceleration)
Straightness: 0.05/300MM
Suggestion: ≤1.5M/S
Applicable input torque: ≤ 3N.m.

RYK40 SYNCHRONOUS BELT MODUL FEATURES

The main body is made of new aviation aluminum with higher rigidity and lighter quality.
The operation speed is fast, and the fastest speed can reach 2000mm/s.

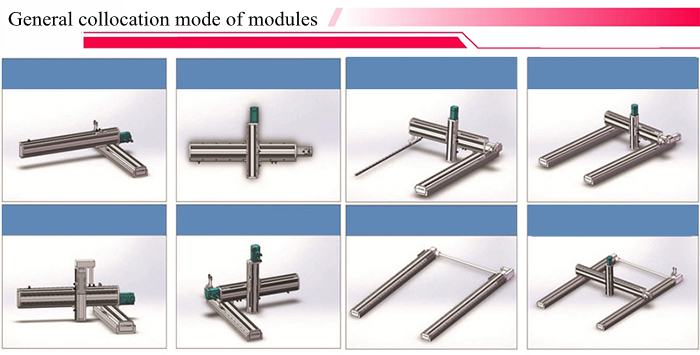

Simple structure, small occupied space, more suitable for various installation and collocation.
The trip is long, and the longest trip can be 4 meters.
Supporting parts have large inventory, low price and high cost performance.
Simple processing and shorter delivery time.
The requirements for motors are not high, which can adapt to mainstream motors on the market.

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

BELT MODULE PRODUCT DESCRIPTION

The linear point unit of the belt module series is composed of a square aluminum profile with a heavy-duty linear slide unit and a slider, and is driven by a synchronous belt to move linearly. The synchronous wheel mechanism at both ends of the profile uses free maintenance ball bearings. The bearing mounting hole is formed at one time, which reduces maintenance difficulties and improves reliability. The belt tension can be adjusted by a simple device installed on the sliding table. All series are designed to be dust-proof and airtight, and foreign matter cannot be easily transferred in.

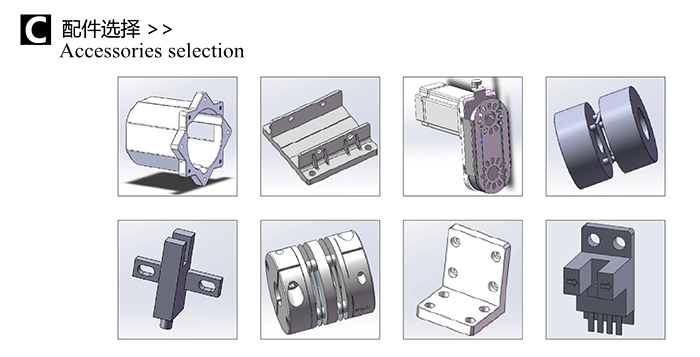

KEY POINTS OF BELT MODUL PRODUCT SELECTION

What is the width of the linear module body?
What is the effective stroke of the linear module?
What is load/speed requirment?
What is repetition accuracy required?
How to install the linear module?
What is motor power or brand?
How to install the motor?
What is the operating environment of the fully enclosed linear module?

Welcome to consult: RYK40 timing belt module

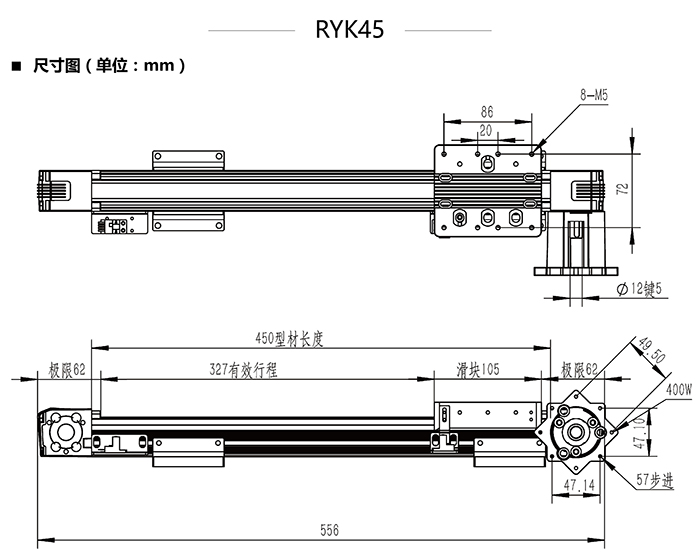

Dimensional drawing
