RYK40 SYNCHRONOUS BELT MODULE

SYNCHRONOUS BELT MODULE CHINA SUPPLIER

Material handling machinery, automotive industry, dispensers, screw machines, welding machines, packaging machinery, textile machinery, etc.

RYK40 SYNCHRONOUS BELT MODULE BASIC
  • Type: RYK40
  • Repeat positioning accuracy: ±0.1
  • Available length: customized within 4 meters
  • Width of rail beam: 40MM
  • Belt specification: PU-3M-15 (steel wire)
  • Reference load: 3KG
  • Synchronous wheel specification: HTD3M-25Z
  • Lead: 75MM
  • Available motor and connection mode: i. Stepper motor: 42 step (direct connection); 57 Stepping (direct connection/big and small wheel deceleration)
  • I. servo motor: 100W (direct connection); 200W/400W (direct connection/big and small wheel deceleration)
  • Straightness: 0.05/300MM
  • Suggestion: ≤1.5M/S
  • Applicable input torque: ≤ 3N.m.
RYK40 SYNCHRONOUS BELT MODUL FEATURES

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

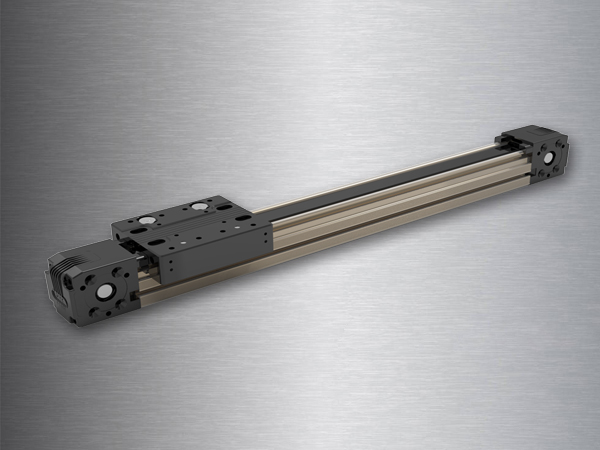

BELT MODULE PRODUCT DESCRIPTION

The linear point unit of the belt module series is composed of a square aluminum profile with a heavy-duty linear slide unit and a slider, and is driven by a synchronous belt to move linearly. The synchronous wheel mechanism at both ends of the profile uses free maintenance ball bearings. The bearing mounting hole is formed at one time, which reduces maintenance difficulties and improves reliability. The belt tension can be adjusted by a simple device installed on the sliding table. All series are designed to be dust-proof and airtight, and foreign matter cannot be easily transferred in.

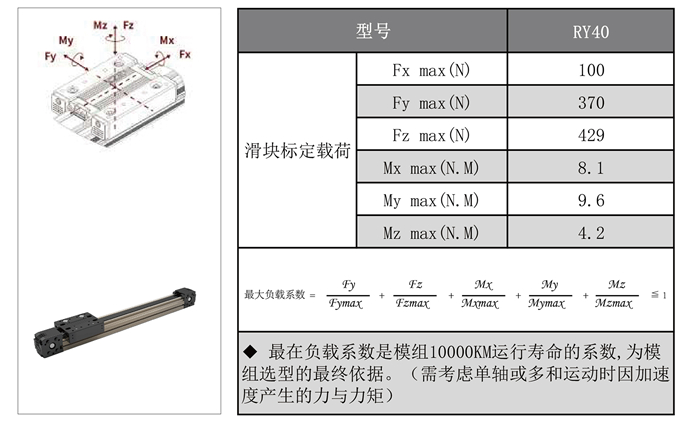

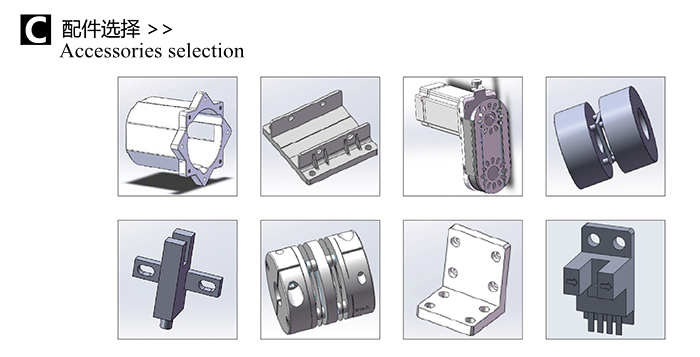

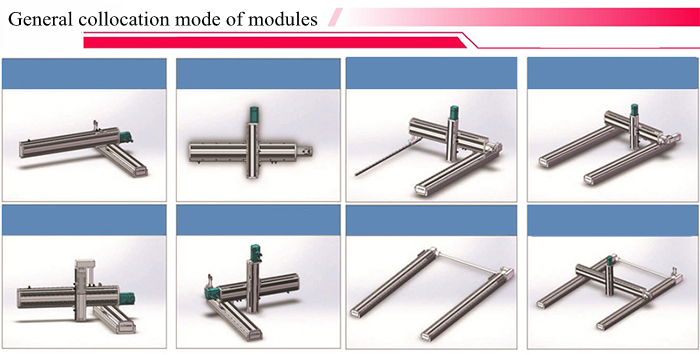

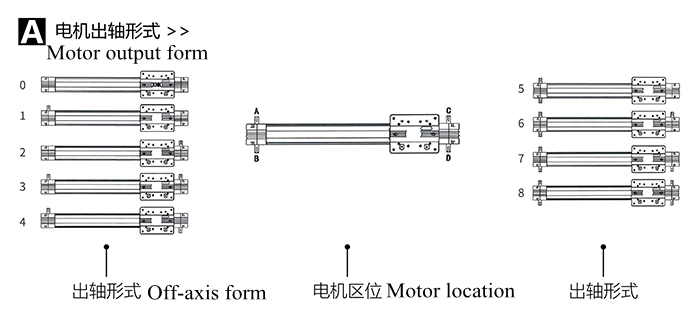

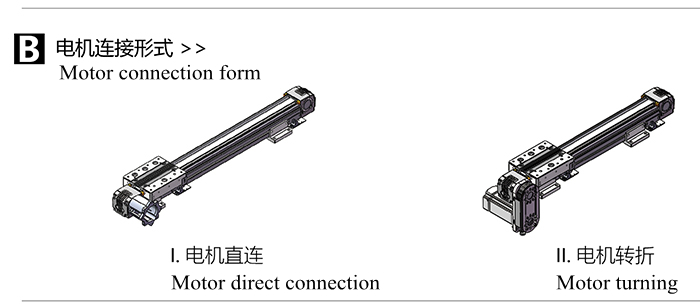

KEY POINTS OF BELT MODUL PRODUCT SELECTION

Welcome to consult: RYK40 timing belt module

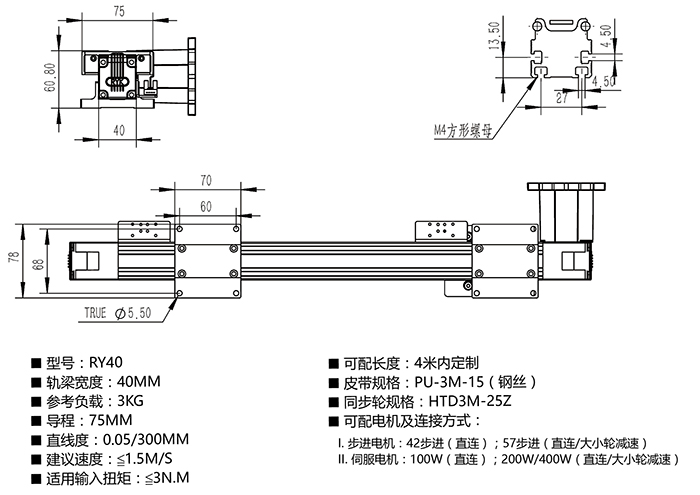

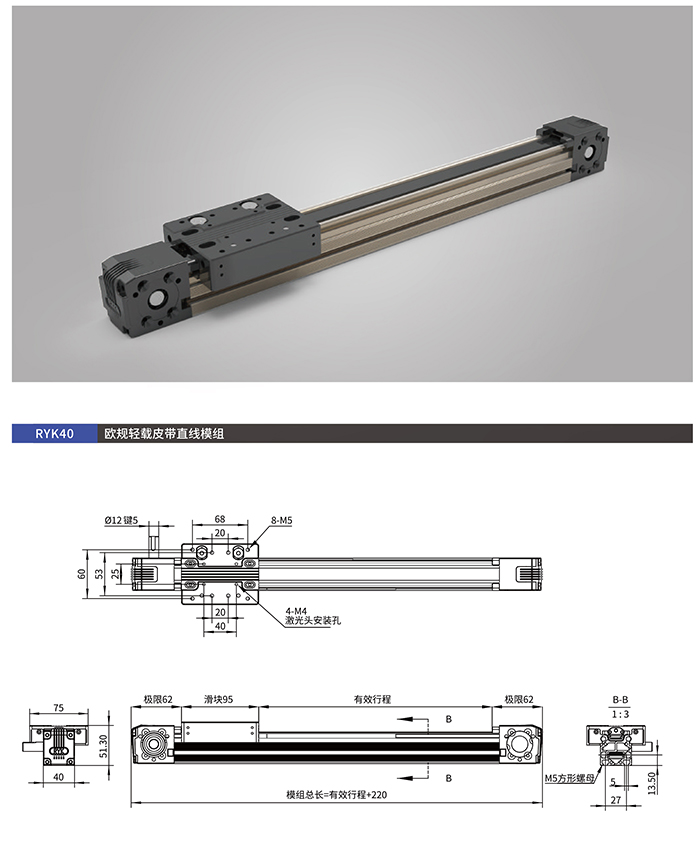

Dimensional drawing
