RY60F STEEL BELT DUST FREE MODULE

STEEL BELT DUST FREE MODULE CHINA SUPPLIER

APPLICATION AREAS OF STEEL BELT DUST FREE MODULE

3C industry, dust-free workshop equipment, winding machines, dispensing machines, screw machines, welding machines, etc.

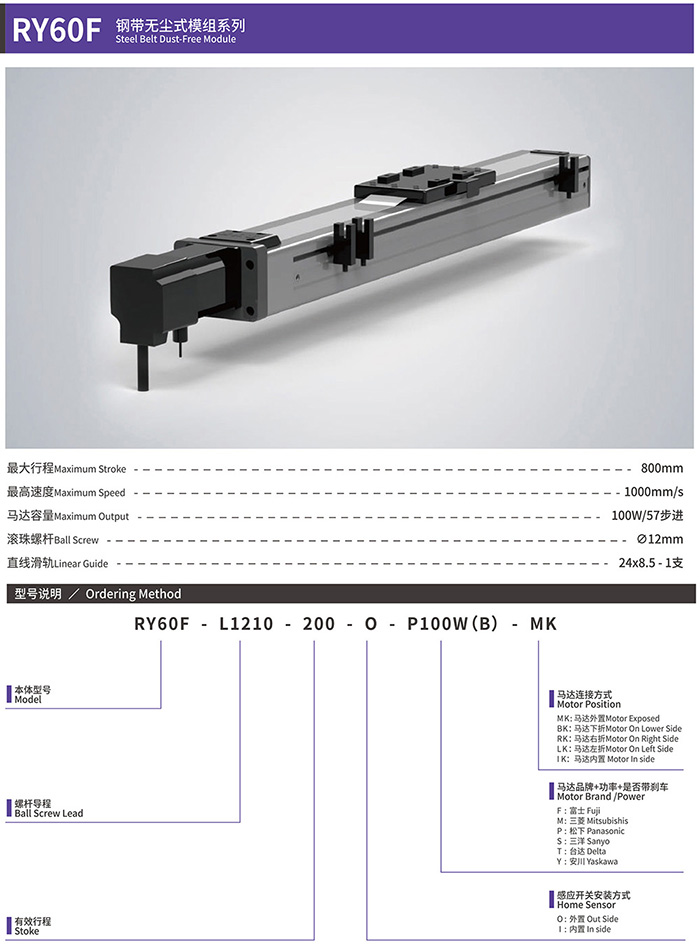

RY60F STEEL BELT DUST FREE MODULE BASIC
  • Type: RY60F
  • Repeat positioning accuracy: ±0.01
  • Screw: C7Φ12mm
  • Screw Lead: 5 10
  • Linear Guide:24×8.5-1 Set
  • Maximum Stroke:≤ 800mm
  • Maximum Speed:≤1000mm/s
  • Maximum Output: 100W/57 Stepper motor
  • Maximum Horizontal Load:20kg
  • Maximum Vertical Load:8kg
RY60F STEEL BELT DUST FREE MODULE FEATURES

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

STEEL BELT DUST FREE MODULE PRODUCT DESCRIPTION

The linear point unit of the belt module series is composed of a square aluminum profile with a heavy-duty linear slide unit and a slider, and is driven by a synchronous belt to move linearly. The synchronous wheel mechanism at both ends of the profile uses free maintenance ball bearings. The bearing mounting hole is formed at one time, which reduces maintenance difficulties and improves reliability. The belt tension can be adjusted by a simple device installed on the sliding table. All series are designed to be dust-proof and airtight, and foreign matter cannot be easily transferred in.

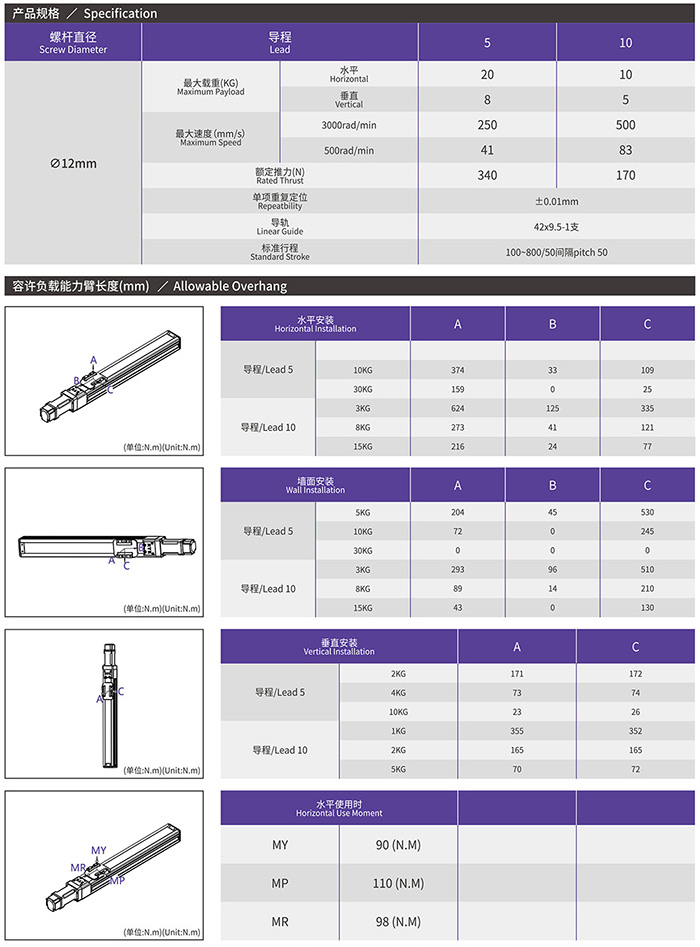

KEY POINTS OF STEEL BELT DUST FREE MODULE PRODUCT SELECTION

Welcome to consult: RY60F Steel Belt Dust Free Module

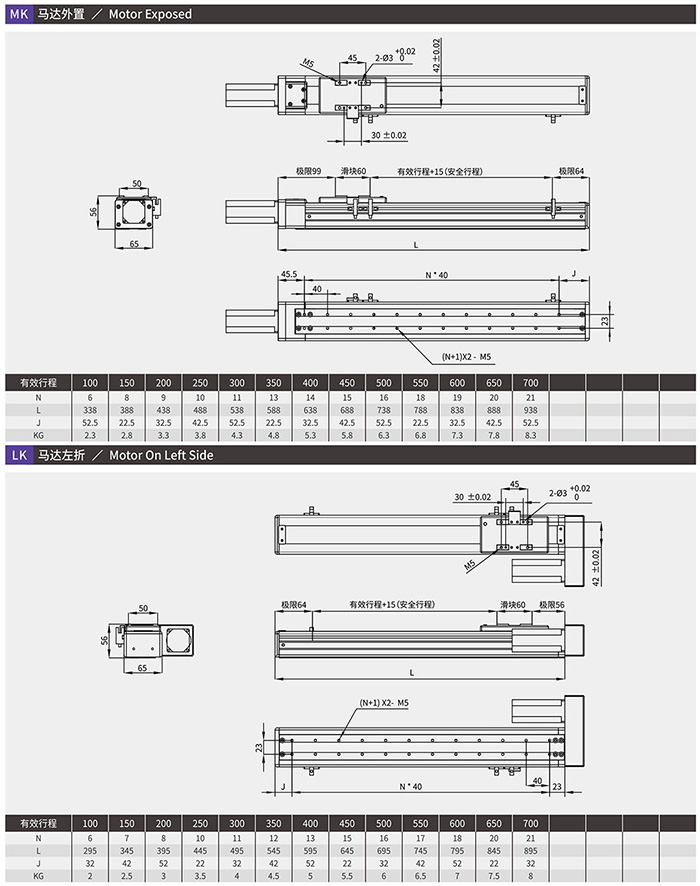

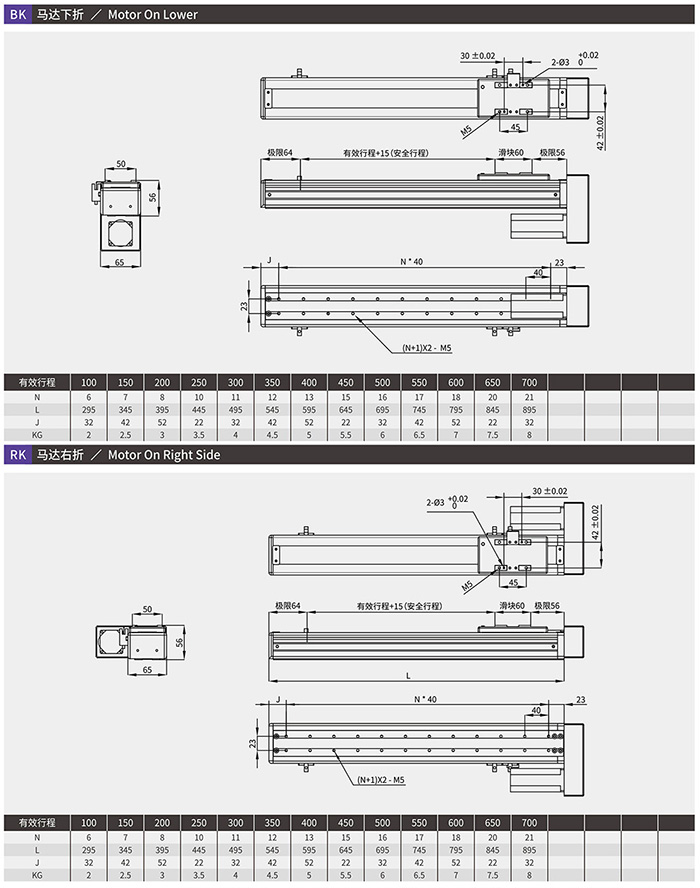

Dimensional drawing
