RY50F STEEL BELT DUST FREE MODULE

STEEL BELT DUST FREE MODULE CHINA SUPPLIER

APPLICATION AREAS OF STEEL BELT DUST FREE MODULE

3C industry, dust-free workshop equipment, winding machines, dispensing machines, screw machines, welding machines, etc.

RY50F STEEL BELT DUST FREE MODULE BASIC

Type: RY50F
Repeat positioning accuracy: ±0.01
Screw: C7Φ12mm
Screw Lead: 5 10
Linear Guide:24×8.5-1 Set
Maximum Stroke:≤ 800mm
Maximum Speed:≤1000mm/s
Maximum Output: 100W/57 Stepper motor
Maximum Horizontal Load:10kg
Maximum Vertical Load:3kg

RY50F STEEL BELT DUST FREE MODULE FEATURES

The core components are parts imported from Taiwan Province ( GTEN/TBI screw rod and PMI guide rail).
The body adopts new aviation aluminum material and mirror stainless steel belt.
Satisfy higher level of dustproof and waterproof.
Support multi-axis setup.
Strong rigidity, high precision.
Suitable for dust-free workshop with high environmental cleanliness.

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

STEEL BELT DUST FREE MODULE PRODUCT DESCRIPTION

The linear point unit of the belt module series is composed of a square aluminum profile with a heavy-duty linear slide unit and a slider, and is driven by a synchronous belt to move linearly. The synchronous wheel mechanism at both ends of the profile uses free maintenance ball bearings. The bearing mounting hole is formed at one time, which reduces maintenance difficulties and improves reliability. The belt tension can be adjusted by a simple device installed on the sliding table. All series are designed to be dust-proof and airtight, and foreign matter cannot be easily transferred in.

STEEL BELT DUST FREE MODULE PRODUCT SELECTION

What is the width of the linear module body?
What is the effective stroke of the linear module?
What is load/speed requirment?
What is repetition accuracy required?
How to install the linear module?
What is motor power or brand?
How to install the motor?
What is the operating environment of the fully enclosed linear module?

Welcome to consult: RY50F Steel Belt Dust Free Module

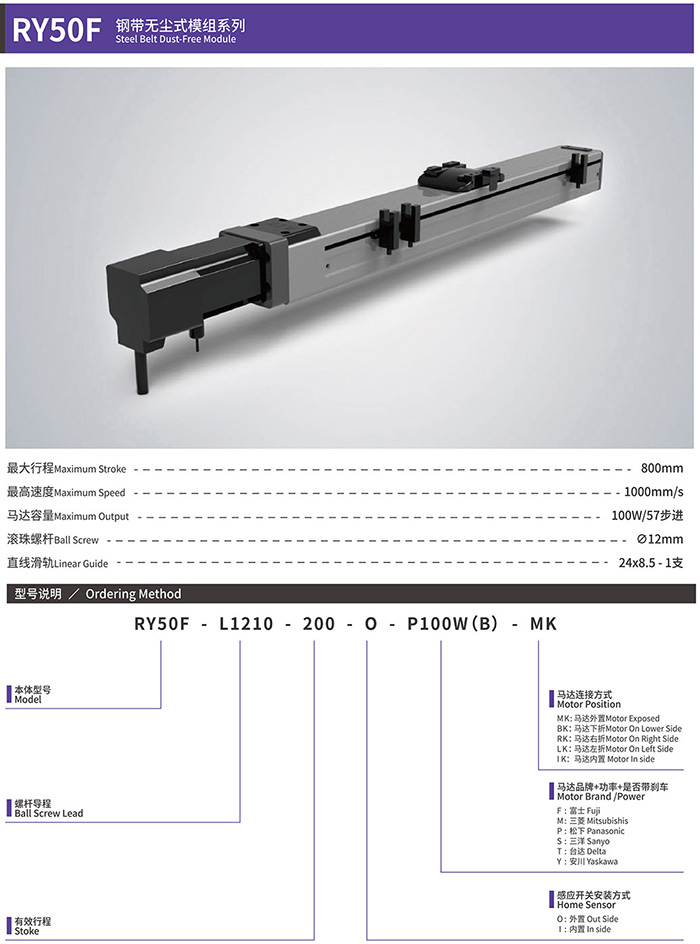

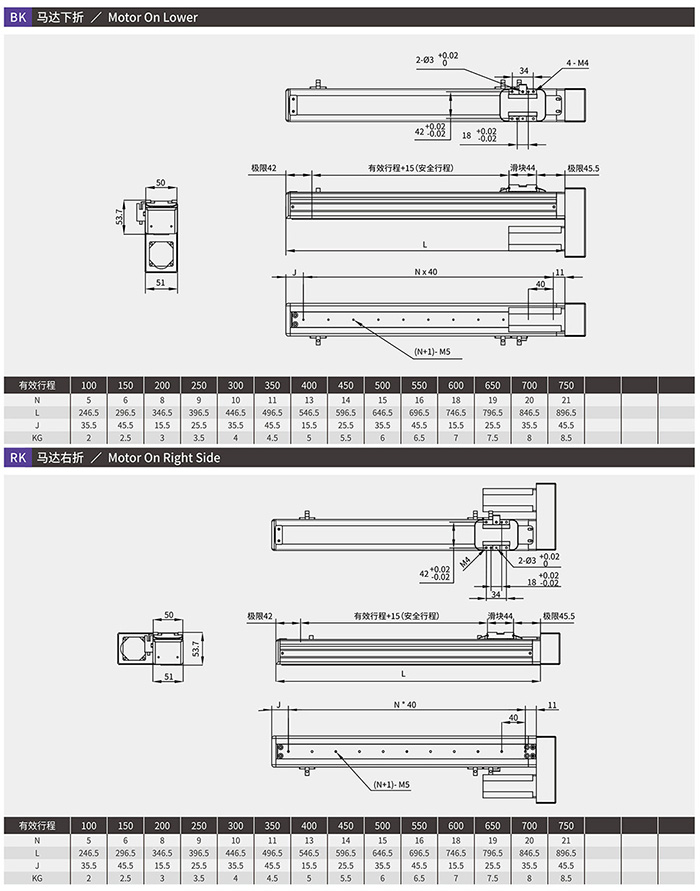

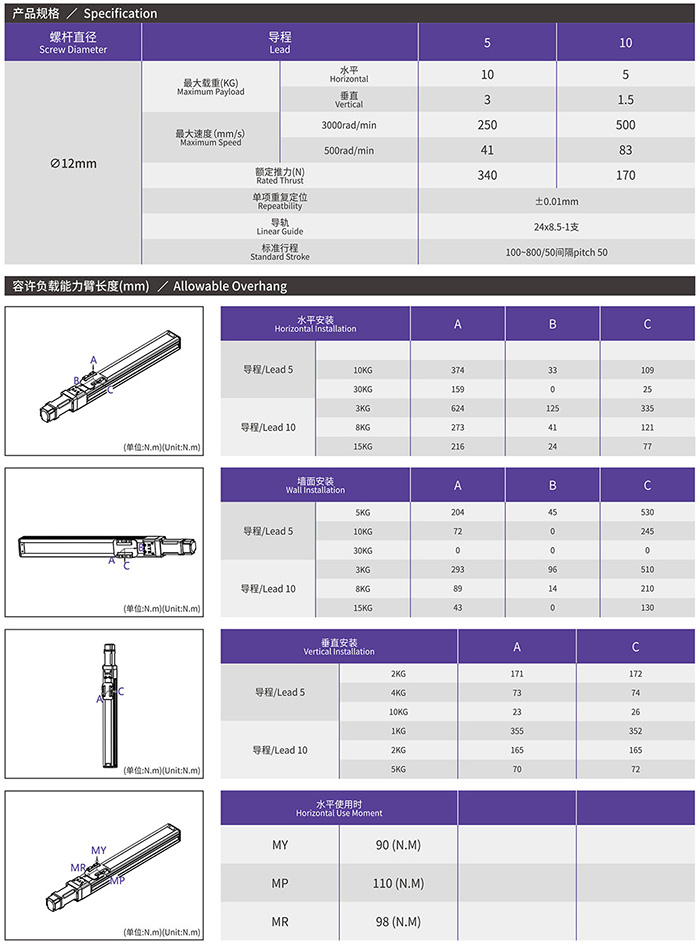

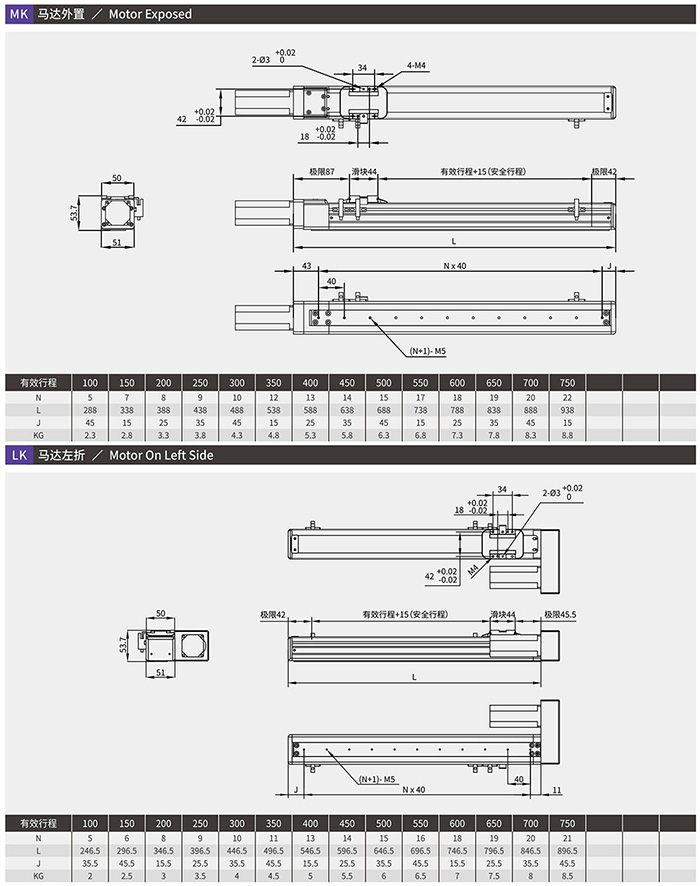

Dimensional drawing
