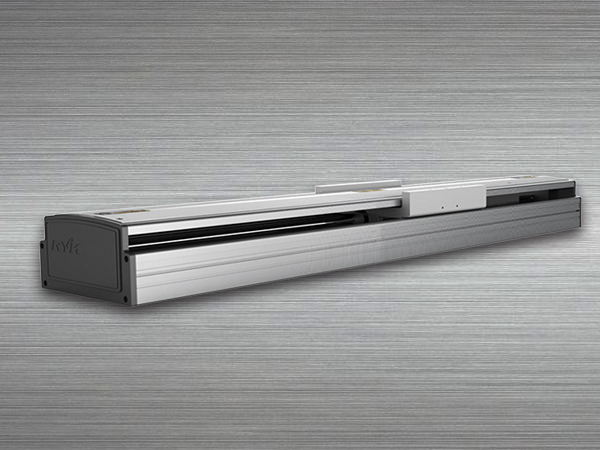

RY200 SEMI-CLOSED SCREW MODULE LINEAR ACTUATOR

SEMI-CLOSED SCREW MODULE CHINA SUPPLIER

APPLICATION AREAS OF SEMI-CLOSED SCREW MODULE CHINA SUPPLIER

Material handling machinery, automotive industry, dispensers, screw machines, welding machines, packaging machinery, textile machinery, etc.

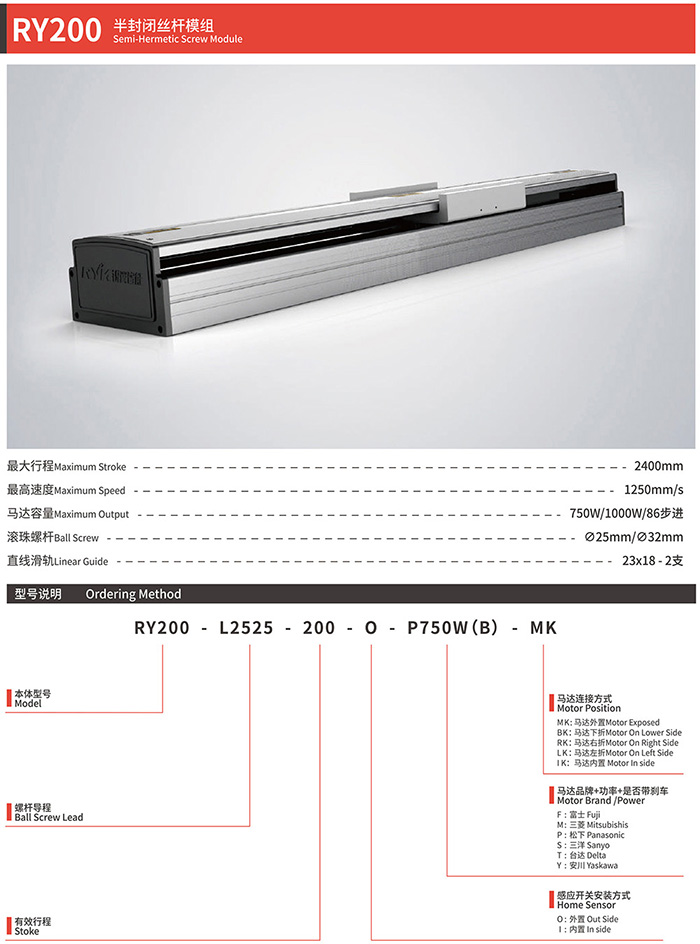

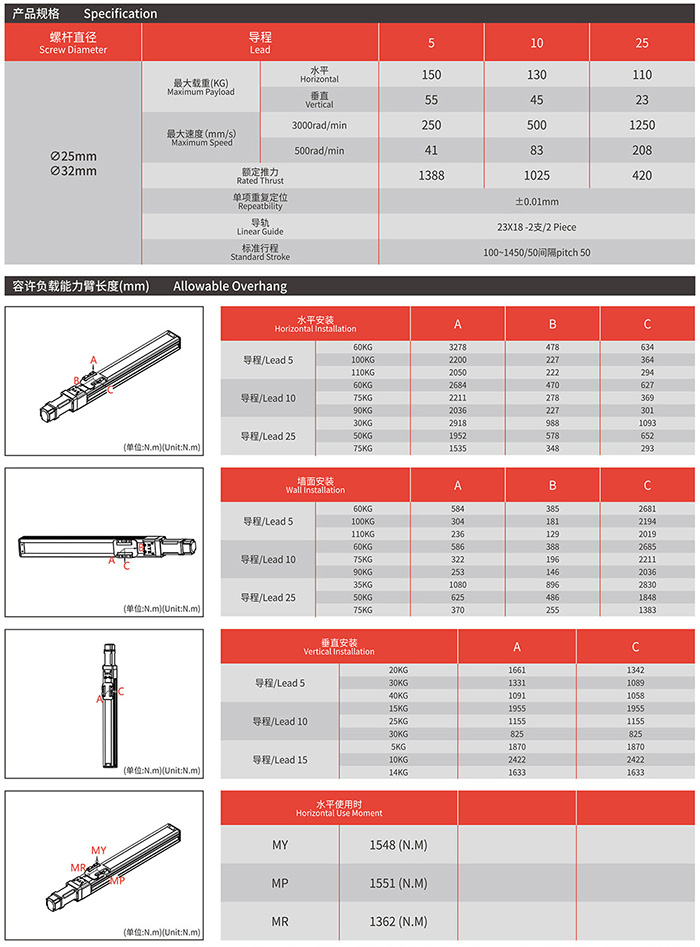

BASIC PARAMETERS

RY200 SEMI-CLOSED SCREW MODULE FEATURES

The core components are parts imported from Taiwan Province ( GTEN/TBI screw rod and PMI guide rail).
The body is made of new aviation aluminum with higher rigidity and lighter quality.
Novel design, adopting new labyrinth slider design.
It can meet the requirements of dustproof and waterproof, and is suitable for relatively harsh use environment.
High-speed stability, high reliability and accuracy up to 0.01mm.
Support multi-axis construction, with wide application range.

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

KEY POINTS OF LINEAR MODULE PRODUCT SELECTION

Welcome to consult: RY200 linear module sliding table

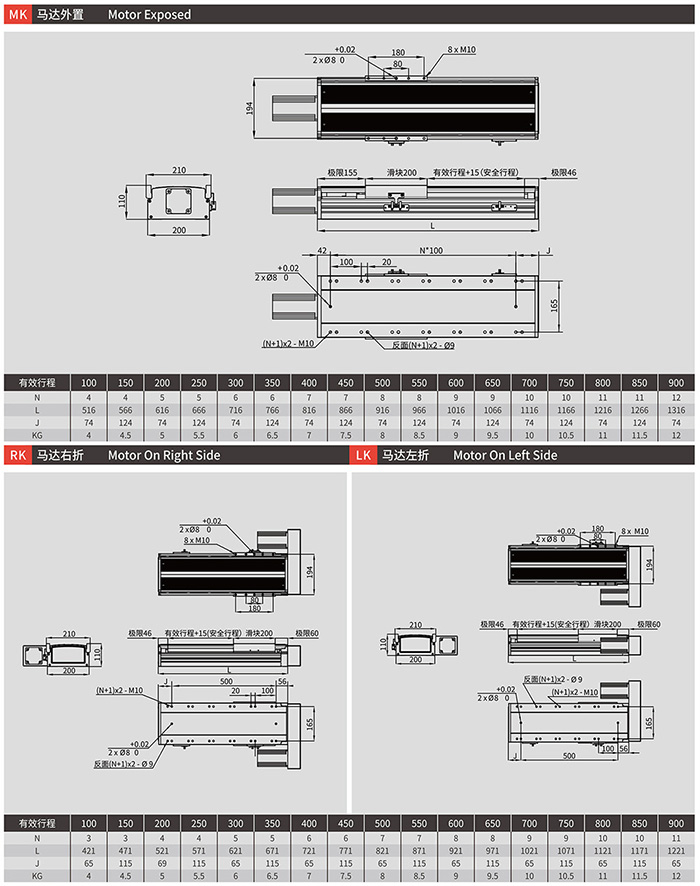

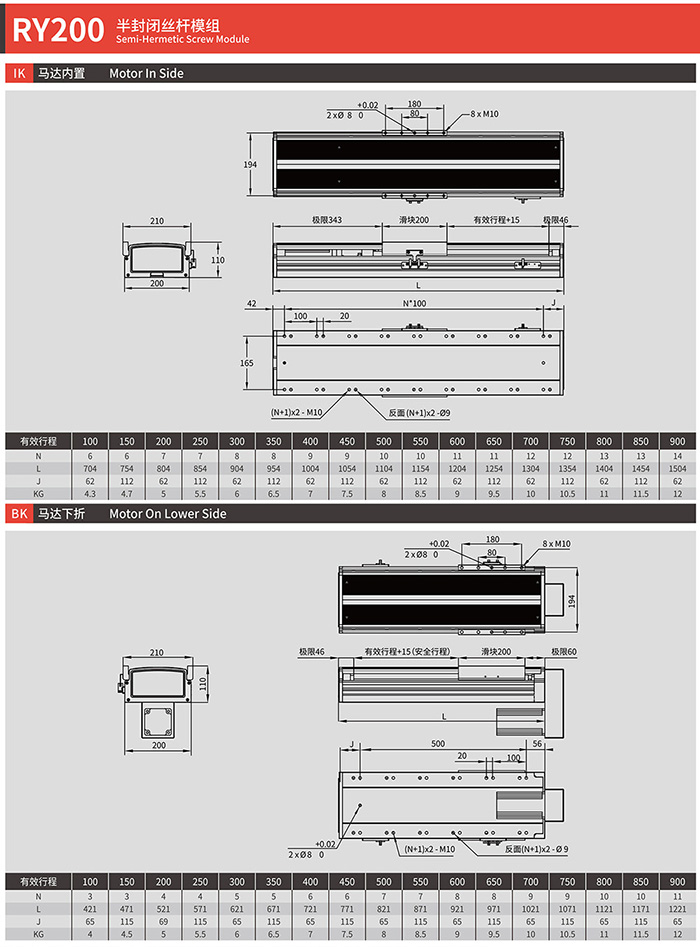

Dimensional drawing
