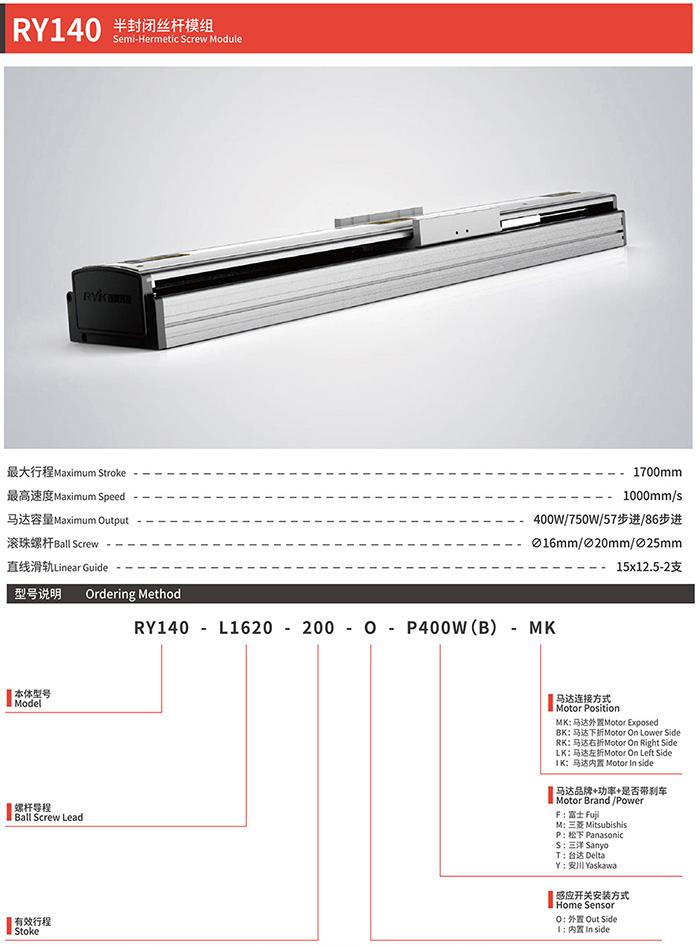

RY140 SEMI-CLOSED SCREW MODULE

SEMI-CLOSED SCREW MODULE CHINA SUPPLIER

Semi-closed screw module is suitable for lithium battery industry, automobile industry, dispensing machine, screw machine, welding machine, material handling machinery, packaging machinery, textile machinery and other automation equipment.

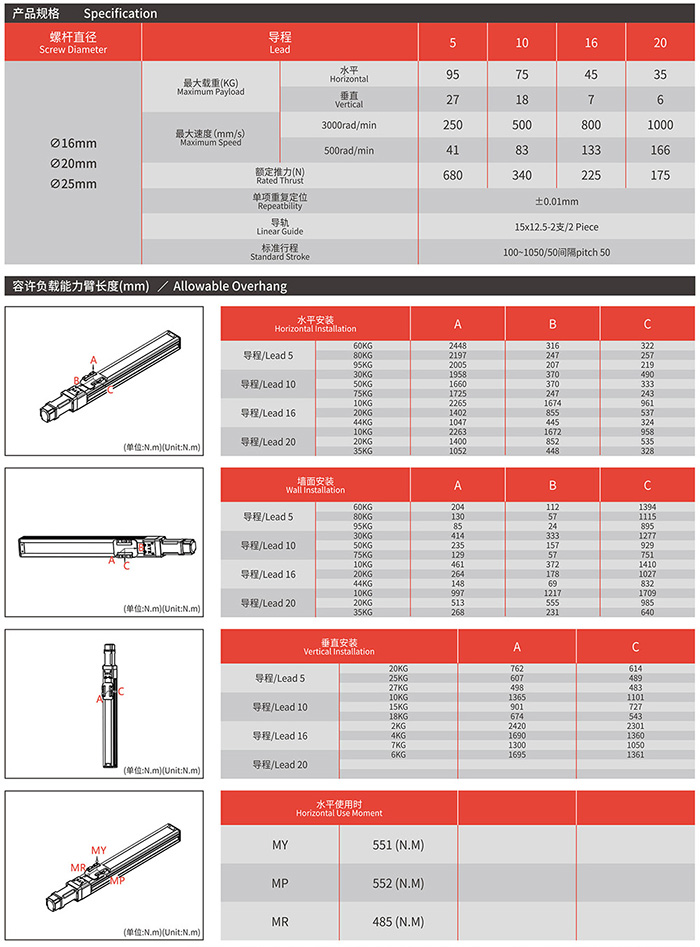

RY140 SEMI-CLOSED SCREW MODULE BASIC PARAMETERS

Repeat positioning accuracy: ±0.01
Ball Screw: C7Φ16mm/C7Φ20mm/ C7Φ25mm
Screw Lead: 5 10 16 20
Linear Guide:15×12.5-2 Sets
Maximum Stroke: 1700mm
Maximum Speed:250 500 800 1000mm/s
Maximum Output:400W/750W/57 Stepper motor/86 Stepper motor
Maximum Horizontal Load:95kg
Maximum Vertical Load:27kg

RY140 SEMI-HERMETIC SCREW MODULE FEATURES

The core components are parts imported from Taiwan Province ( GTEN/TBI screw rod and PMI guide rail).
The body is made of new aviation aluminum with higher rigidity and lighter quality.
High stability, high reliability and accuracy up to 0.1mm.
Smooth operation, no wear, little maintenance and long service life.
Compact size, space saving and easy construction.
The requirements for motors are not high, which can adapt to mainstream motors on the market.

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

KEY POINTS OF LINEAR MODULE PRODUCT SELECTION

What is the width of the linear module body?
What is the effective stroke of the linear module?
What is load/speed requirment?
What is repetition accuracy required?
How to install the linear module?
What is motor power or brand?
How to install the motor?
What is the operating environment of the fully enclosed linear module?

Welcome to consult: RY140 semi-enclosed screw module

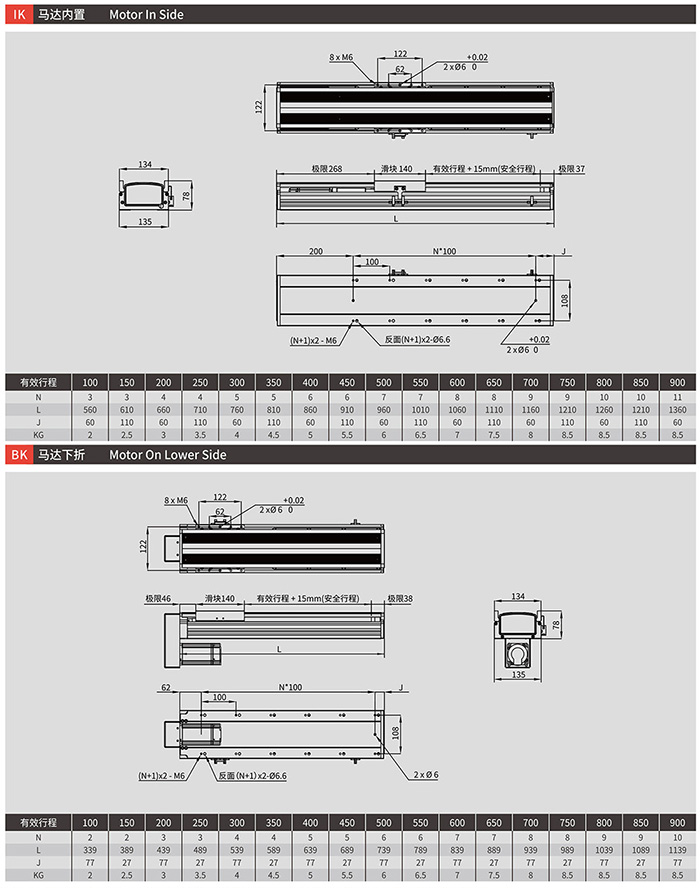

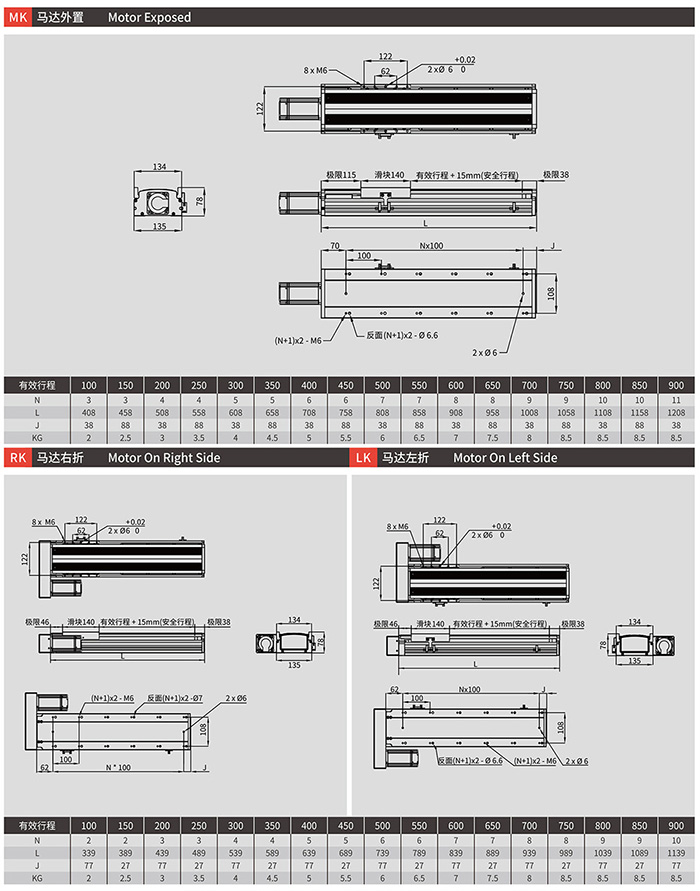

Dimensional drawing
