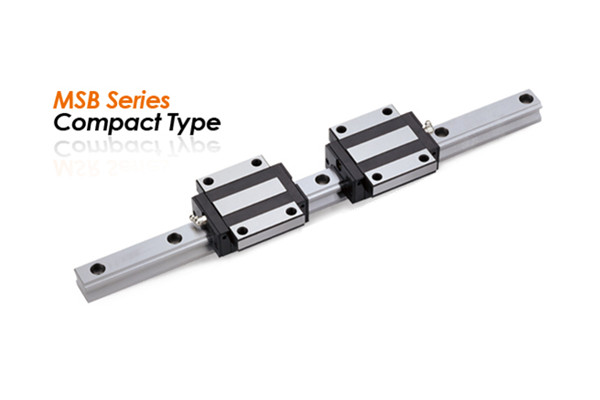

The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, MSB series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.
The patent design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.
| MSB-TE | MSB-E | MSB-LE |
 |  |  |
| This type offers the installation either from top or bottom side of carriage. | All dimensions are same as MSB-TE except the length is longer, which makes it more rigid. | All dimensions are same as MSB-E except the length is longer, which makes it more rigid. |
| MSB-TS | MSB-S | MSB-LS |
 |  |  |
| Square type with smaller width and can be installed from top side of carriage. | All dimensions are same as MSB-TS except the length is longer, which makes it more rigid. | All dimensions are same as MSB-S except the length is longer, which makes it more rigid. |
| MSB TE/E | MSB TS/S |
| Model No. | Model No. |
| MSB 15TE | MSB 15TS |
| MSB 15E | MSB 15S |
| MSB 20TE | MSB 20TS |
| MSB 20E | MSB 20S |
| MSB 25TE | MSB 25TS |
| MSB 25E | MSB 25S |
| MSB 30TE | MSB 30TS |
| MSB 30E | MSB 30S |
| MSB 35TE | MSB 35TS |
| MSB 35E | MSB 35S |
| MSB 35LE | MSB 35LS |
