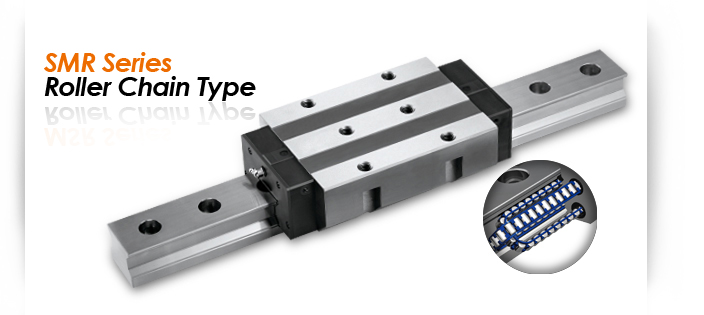

The roller chain type linear guideway, SMR series, equip with rollers instead of the ball, and therefore the SMR
series can provide higher rigidity and loading than the normal type with the same size. Besides, the patent of roller chain design can make the movement smooth and stability, especially suit for the requests of high accuracy, heavy load and high rigidity.

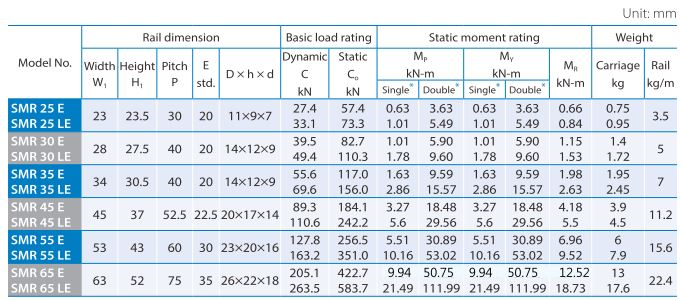

| SMR-E | SMR-LE |
 |  |
| This type offers the installation either from top or bottom side of carriage. | All dimensions are same as SMR-E except the length is longer, which makes it more rigid. |

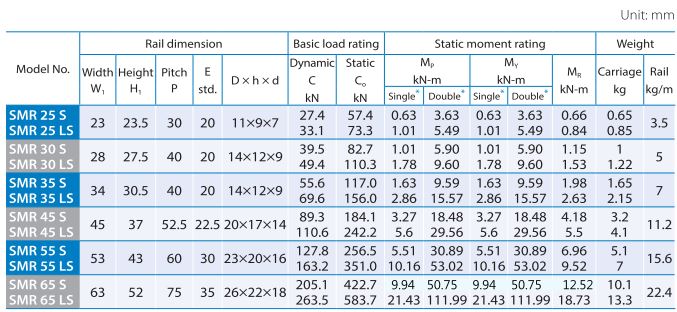

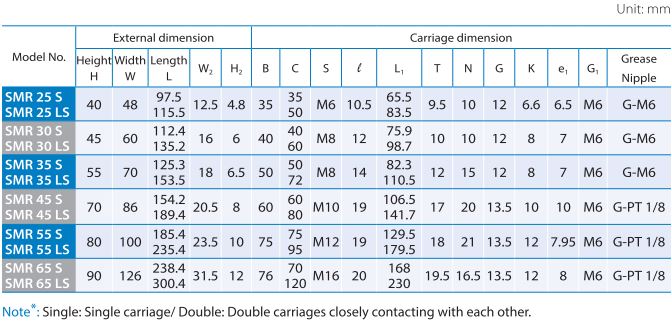

| SMR-S | SMR-LS |
 |  |
| Square type with smaller width and can be installed from top side of carriage. | All dimensions are same as SMR-S except the length is longer, which makes it more rigid. |
