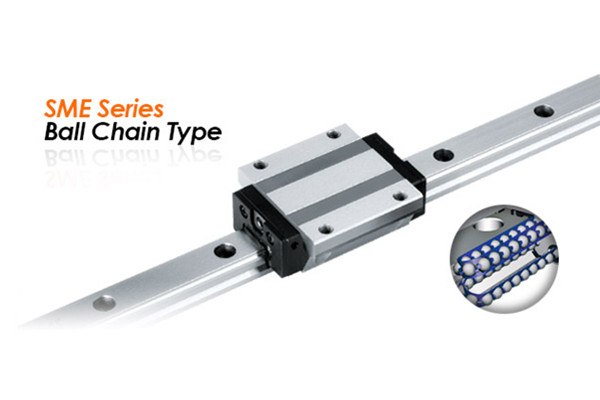

The ball chain type linear guideway, SME series, equip with the patent of ball chain design can make the movement smooth
and stability, especially suit for the requests of high speed, high accuracy.
| SME-SB/SV | SME-LSB/LSV |
 |  |
| All dimensions are same as SME-SA except the mounting hole dimensions of carriage are different and the height is lower, which do not change the basic loading rating. | All dimensions are same as SME-LSB and SME-LSV except the length is longer, which makes it more rigid. |
| SME-EA | SME-LEA |
 |  |
| This type offers the installation either from top or bottom side of carriage. | All dimensions are same as SME-EA except the length is longer, which makes it more rigid. |
| SME-EB | SME-LEB |
 |  |
| All dimensions are same as SME-EA except the mounting hole dimensions of carriage are different and the height is lower, which do not change the basic loading rating. | All dimensions are same as SME-EB except the length is longer, which makes it more rigid. |
| SME-SA | SME-LSA |
 |  |
| Square type with smaller width and can be installed from top side of carriage. | All dimensions are same as SME-SA except the length is longer, which makes it more rigid. |
SME EA/LEA MODEL NO:
SME 15EA
SME 15LEA
SME 20EA
SME 20LEA
SME 25EA
SME 25LEA
SME 30EA
SME 30LEA
SME 35EA
SME 35LEA
SME 45EA
SME 45LEA
SME EB/LEB MODEL NO: .
SME 15EB
SME 15LEB
SME 20EB
SME 20LEB
SME 25EB
SME 25LEB
SME SA/LSA MODEL NO:
SME 15SA
SME 15LSA
SME 20SA
SME 20LSA
SME 25SA
SME 25LSA
SME 30SA
SME 30LSA
SME 35SA
SME 35LSA
SME 45SA
SME 45LSA
SME SB/LSB MODEL NO:
SME 15SB
SME 15LSB
SME 20SB
SME 20LSB
SME 25SB
SME 25LSB
SME 30SB
SME 30LSB
SME 35SB
SME 35LSB
SME 45SB
SME 45LSB
SME SV/LSV MODEL NO:
SME 25SV
SME 25LSV
