PMI LINEAR GUIDE SMB SERIES BALL CHAIN COMPACT TYPE

SMB SERIES BALL CHAIN COMPACT TYPE

FEATURES

The trains of balls are designed to a contact angle of 45° which enables it to bear an equal load in radial, reversed radial and lateral directions. Therefore, it can be applied in any installation direction. Furthermore, SMA series can achieve a well balanced preload for increasing rigidity in four directions while keeping a low frictional resistance. This is especially suit to high precision and high rigidity required motion.

The patent design of lubrication route makes the lubricant evenly distribute in each circulation loop. Therefore, the optimum lubrication can be achieved in any installation direction, and this promotes the performance in running accuracy, service life, and reliability.

CHARACTERISTICS

• MSB And SMB Use One Rail At The Same Time
• Strong Structure Ball Chain Design
• Low Noise, Good Lubricant Effect
• Compact, Four-Way Equal Load
• Self Alignment Capability
• High Precision And High Stability. Suit For High Speed Machine Tools

SMB LINEAR GUIDE RAIL Model NO

SMB15E SMB20E SMB25E SMB30E SMB15S SMB20S SMB25S SMB30S

DIMENSION

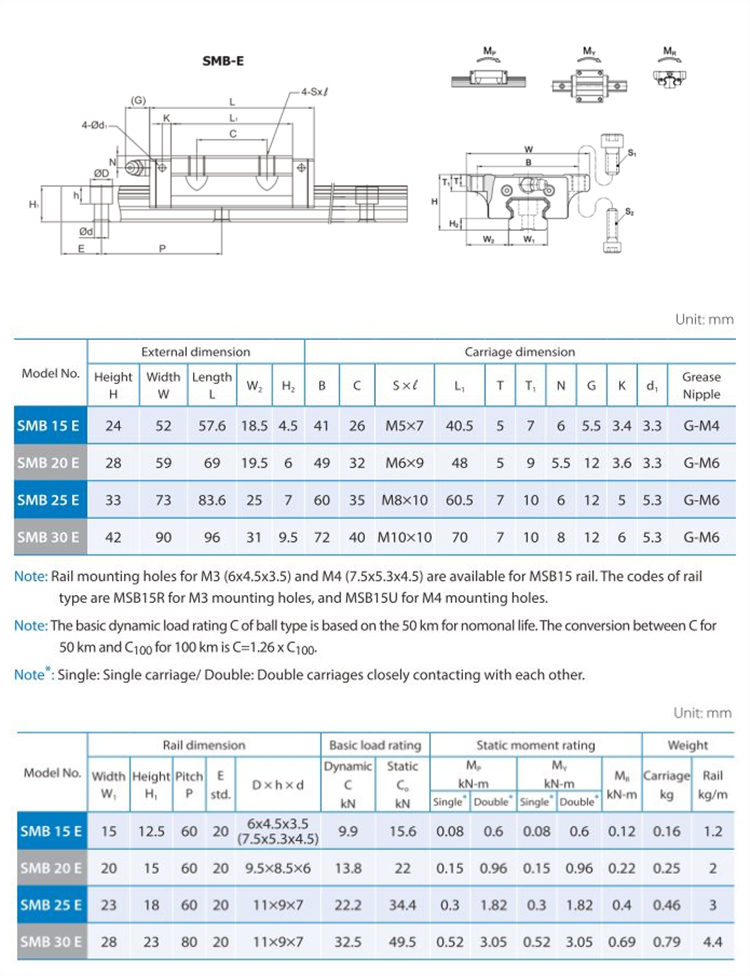

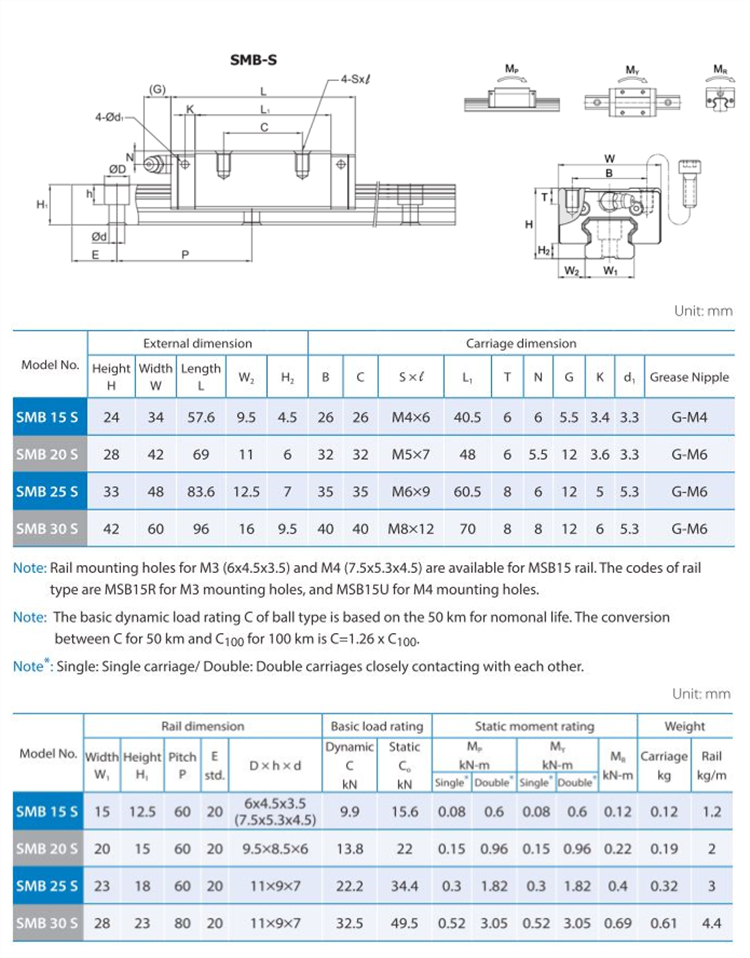

SMB-ESMB-S
SMB-ESMB-S
All dimensions are same as SMB-TE except the length is longer, which makes it more rigid.All dimensions are same as SMB-TS except the length is longer, which makes it more rigid.
Dimensional drawing
