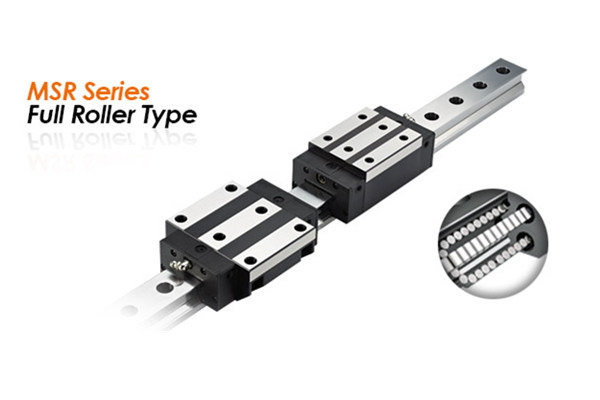

PMI LINEAR GUIDE MSR SERIES FULL ROLLER TYPE

FEATURES

The full roller type linear guideway, MSR series, equip with rollers instead of the ball, and therefore the MSR series can provide higher rigidity and loading than the normal type with the same size. Especially suit for the requests of high accuracy, heavy load and high rigidity.

CHARACTERISTICS
  • UltraHeavy Load
  • The Optimization Design of Four Directional Load
  • Ultra High Rigidity
DIMENSION ​
MSR-EMSR-LE
MSR-EMSR-LE
This type offers the installation either from top or bottom side of carriage.All dimensions are same as MSR-E except the length is longer, which makes it more rigid.
MSR-SMSR-LS
MSR-SMSR-LS
Square type with smaller width and can be installed from top side of carriage.All dimensions are same as MSR-S except the length is longer, which makes it more rigid.

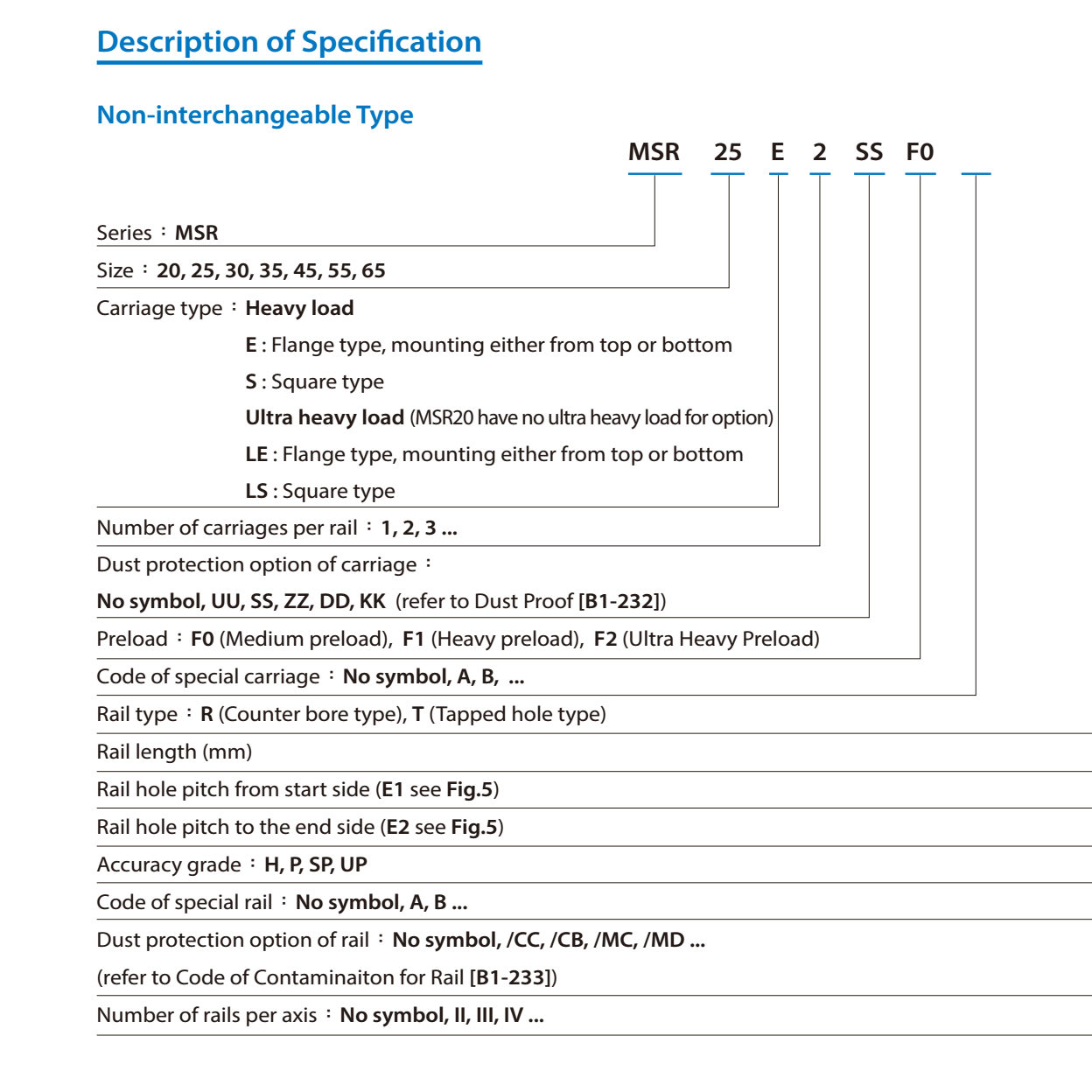

MSR E/LE MODEL NO:

MSR 20E
MSR 25E
MSR 25LE
MSR 30E
MSR 30LE
MSR 35E
MSR 35LE
MSR 45E
MSR 45LE
MSR 55E
MSR 55LE
MSR 65LE

MSR S/LS MODEL NO:

MSR 20S
MSR 25S
MSR 25LS
MSR 30S
MSR 30LS
MSR 35S
MSR 35LS
MSR 45S
MSR 45LS
MSR 55S
MSR 55LS
MSR 65LS

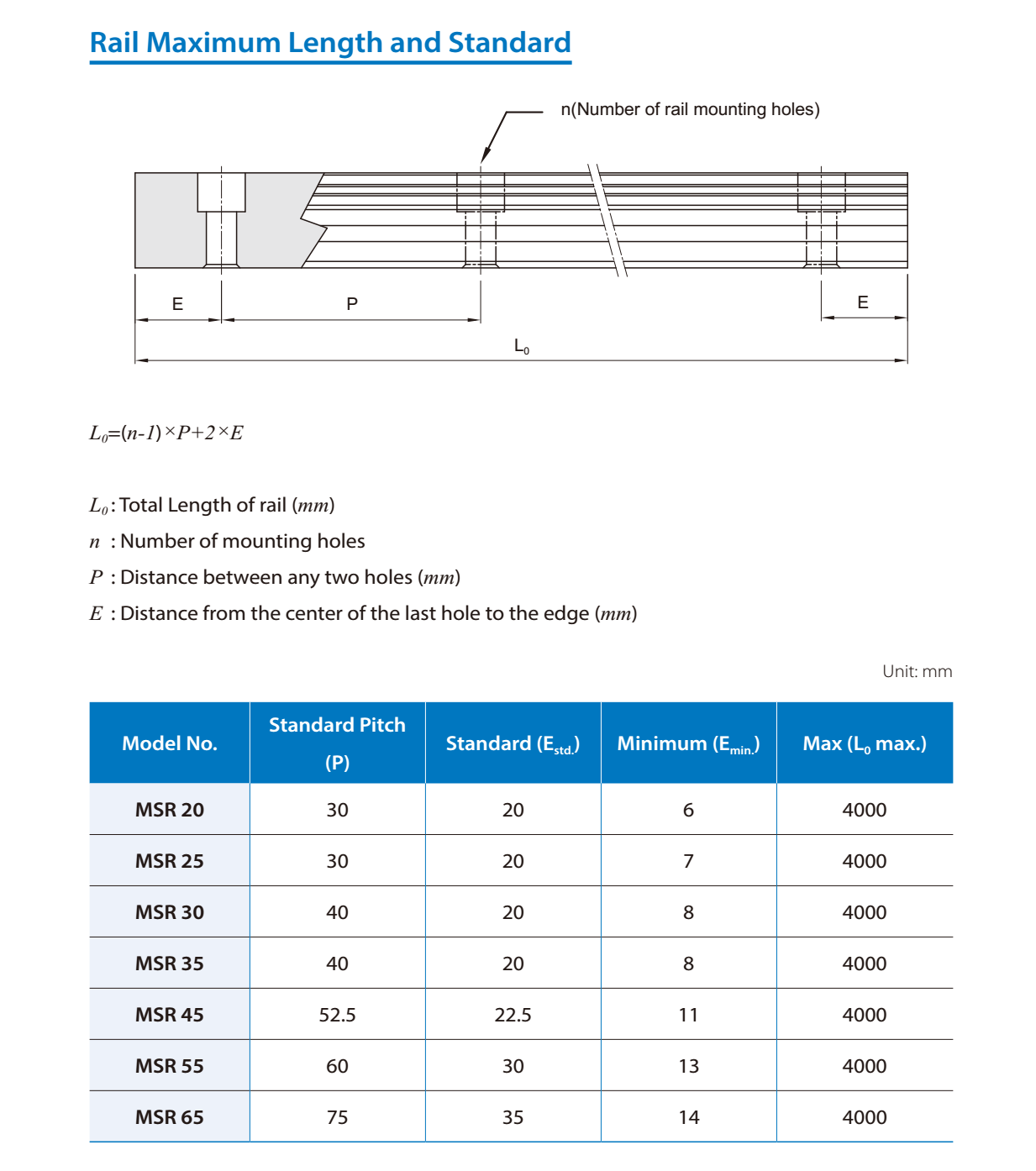

Dimensional drawing
