MCHA series original spot Taiwan Mindman air claw cylinder features

Manufactured by MINDMAN,Made in Taiwan
Simple structure with high stability.
Economic type and High rigidity.
Gripping force 10N~150N.
Using rack and pinions to achieve parallel gripping.
Two-jaw angular gripper.(－10°～30°)

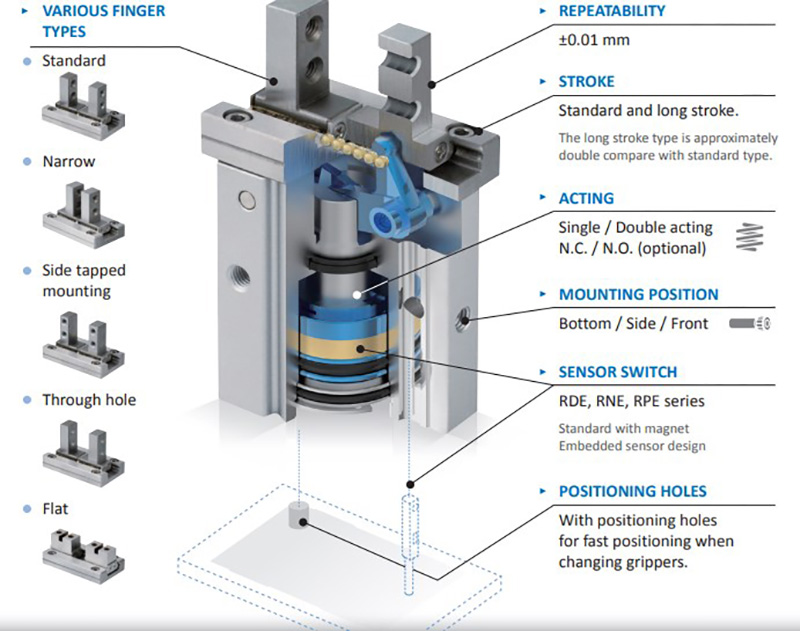

Key points of Mindman MCHA Gripper

Integral linear guide used for high rigidity and high precision.
The material of finger is martensitic stainless steel.
Body thickness tolerance ±0.05mm.
Bottom pin holes for accurate re-locating.
Grooves on the body for sensor switch to be inserted into.
The gripping stroke of long-stroke type is approximately double compare with standard type.
Magnetic as standard.

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

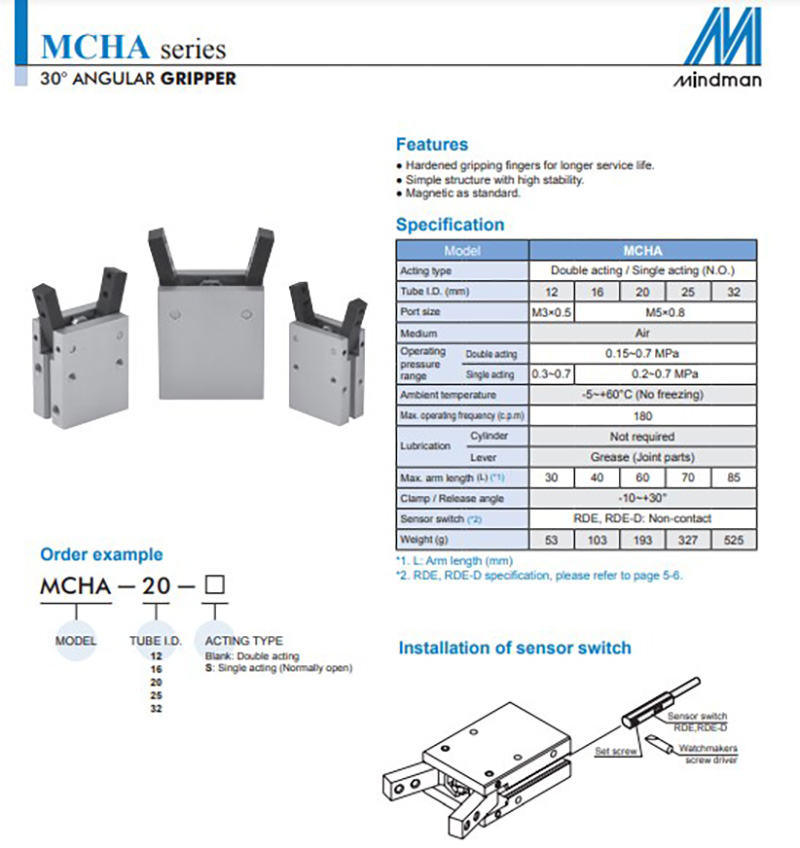

Dimensional drawing

Mindman MCHA Gripper (6)

Mindman MCHA Gripper (7)
