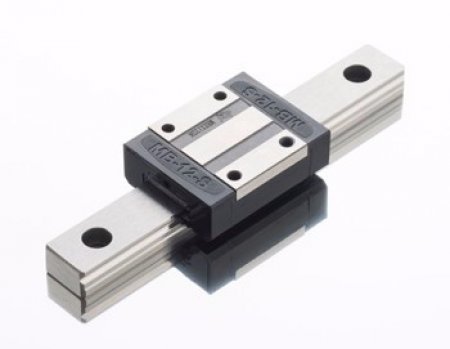

STAF LINEAR GUIDE -MBX SERIES – NON CAGE TYPE

MB series / Miniature

With the diversification of transmission parts, high performance parts have become a development trend. OME Technology has started to enter the research, development, and design of “micro linear guides” in 2008. By using cage design and ductile packing system, products are miniaturized, with the application advantages of high precision, low noise, and long lifetime.

Key features are listed below

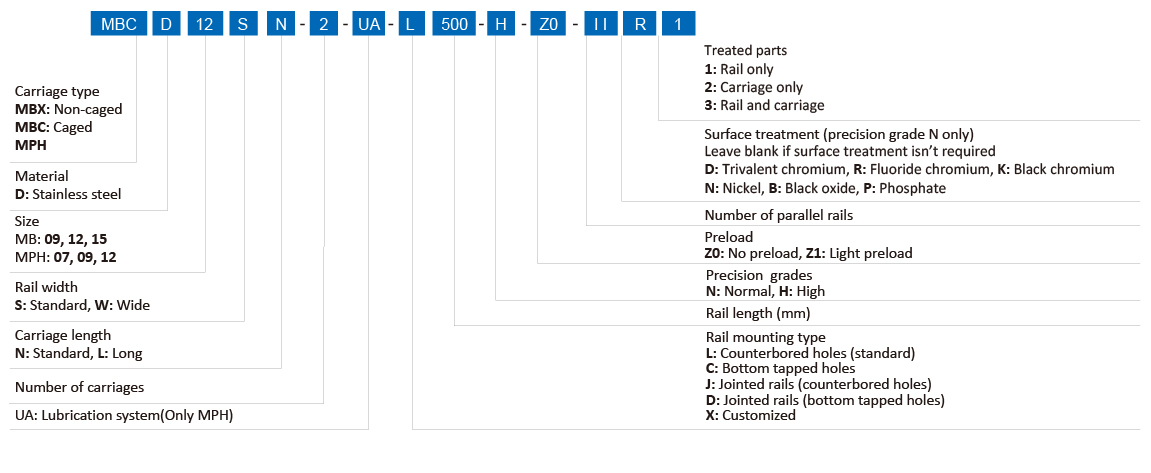

Slider Model No: MBX09SN,MBX09SL,MBX09WN,MBX09WL,MBX12SN,MBX12SL,MBX12WN,MBX12WL,MBX15SN, MBX15SL MBX15WN,MBX15WL

Slider rail length: 1000 L or custom

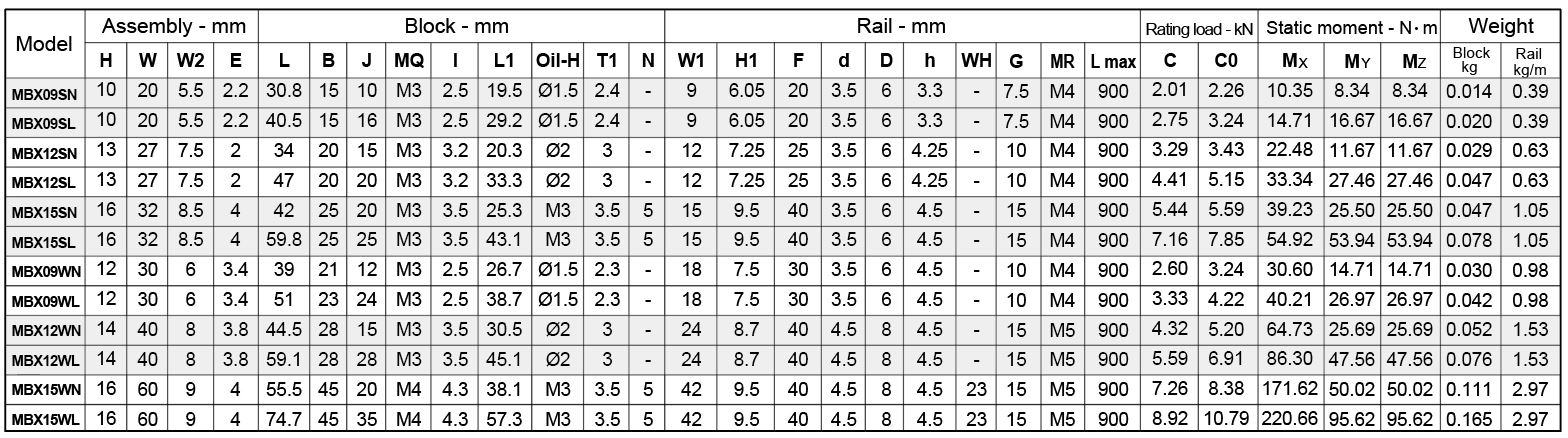

Detail parameter:

MBX__SN	Size
	09/12/15
MBX__SL	Size
	09/12/15
MBX__WN	Size
	09/12/15
MBX__WL	Size
	09/12/15

APPLICATIONS: Semiconductor Industries, Automation equipments, Industrial machinery, 3D Printing ect.

Dimensional drawing
