Leadshine offers a wide range of industrial quality 3 phase hybrid stepper motors. Those motors are available in frame sizes of NEMA 23, 34, and 42. They are built with high quality materials and are high reliability and with excellent performance of accuracy, low noise, low heating, and low vibration.
Stepper motors have been widely used in engraving machines, laser machines, numerical control machine tools, textile and garment machinery, medical equipment, measuring equipment, electronic processing equipment, packaging machinery and other automation equipment and instruments.

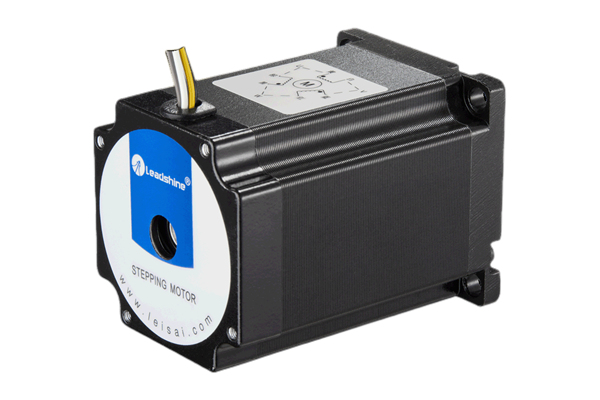

● 3 phase 1.2° stepping angle

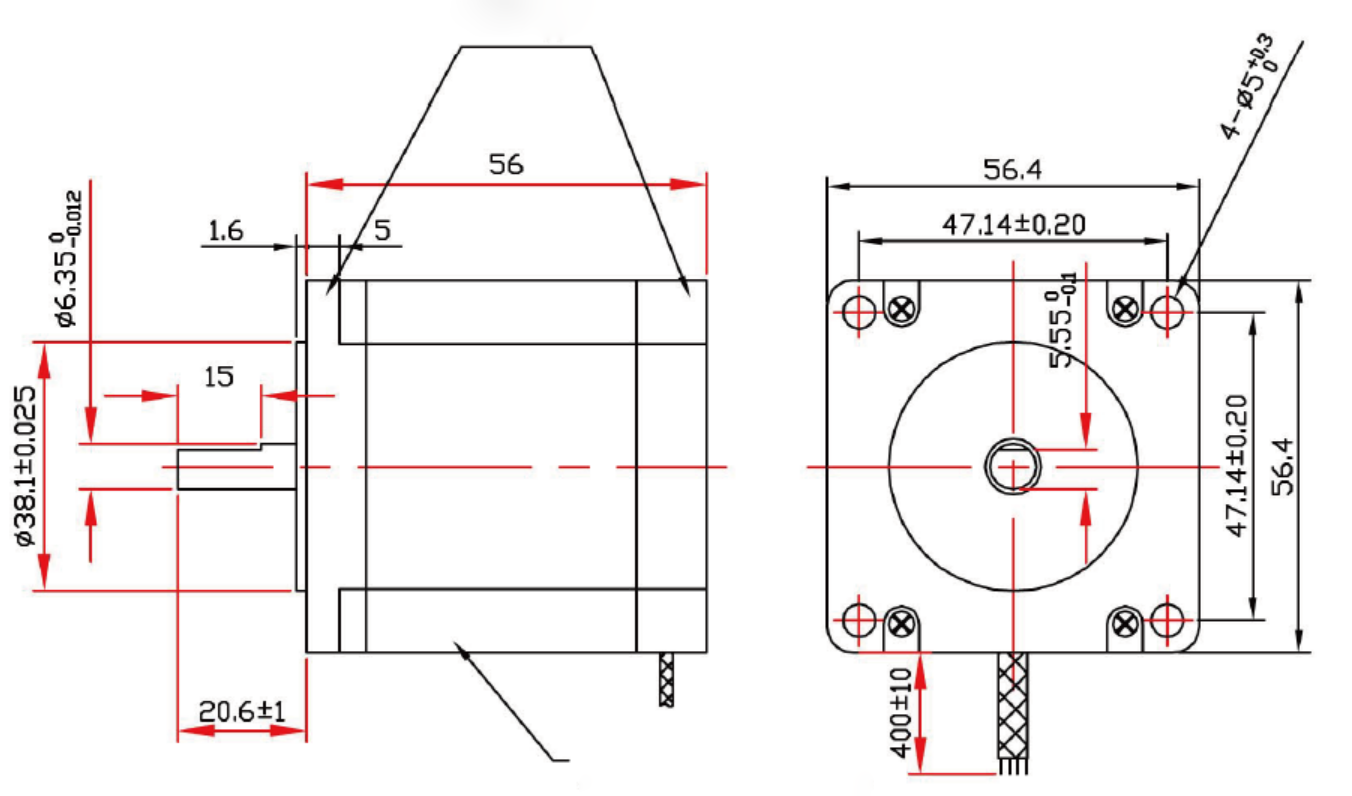

● Standard NEMA 23 dimensions
● Holding toque of 0.9 Nm (128 oz-in)
● High precision
● Smooth movement
● Low motor heating
● Low movement noise
| Model | 573S09 |
| Frame Size (NEMA) | 23 |
| Length (mm) | 56 |
| Holding Torque (N.m) | 0.9 |
| Phase Current (A) | 3.5 |
| Shaft Diameter (mm) | 6.35 |
| Center Diameter (mm) | 38.1 |
| IP Rate | IP40 |
| Characteristics | Standard |
| Resistance (ohm) | 0.77 |
| Inductance (mH) | 1.8 |
| Inertia (kg/cm2) | 0.3 |
| Weight (kg) | 0.75 |
The 3S series are 3-phase hybrid stepper motors, can be implemented in many industrial motion control applications. Built with premium quality materials including bearings and shaft made by famous manufacturers, they can move the attached load at high precision and with very low motor heating & vibration.
