Leadshine offers a wide range of industrial quality 3 phase hybrid stepper motors. Those motors are available in frame sizes of NEMA 23, 34, and 42. They are built with high quality materials and are high reliability and with excellent performance of accuracy, low noise, low heating, and low vibration.
Stepper motors have been widely used in engraving machines, laser machines, numerical control machine tools, textile and garment machinery, medical equipment, measuring equipment, electronic processing equipment, packaging machinery and other automation equipment and instruments.

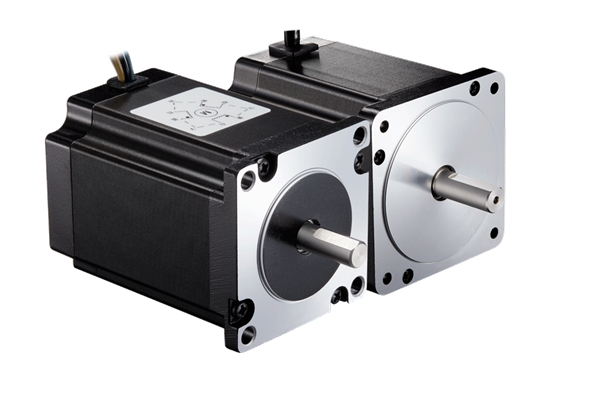

3-phase hybrid stepper motor
NEMA 23(57mm) to NEMA 42(110mm)
| Model | Phase | Frame Size(NEMA) | Length(mm) | Holding Torque(N.m) | Phase Current(A) | Shaft Diameter(mm) | Center Diameter(mm) | IP Rate | Type |
| 573S09 | 3 | 23 | 56 | 0.9 | 3.5 | 6.35 | 38.1 | IP40 | Standard |
| 573S15 | 3 | 23 | 79 | 1.5 | 5.2 | 8 | 38.1 | IP40 | Standard |
| 573S15-L | 3 | 23 | 79 | 1.5 | 5.2 | 8 | 38.1 | IP40 | Standard |
| 863S22 | 3 | 34 | 73 | 2.2 | 5 | 12 | 73 | IP40 | Standard |
| 863S42 | 3 | 34 | 105 | 4.2 | 5 | 12 | 73 | IP40 | Standard |
| 863S68H | 3 | 34 | 127 | 6.8 | 3.5 | 14 | 73 | IP40 | Standard |
| 1103S20 | 3 | 42 | 221 | 20 | 5.2 | 19 | 85 | IP40 | Standard |
