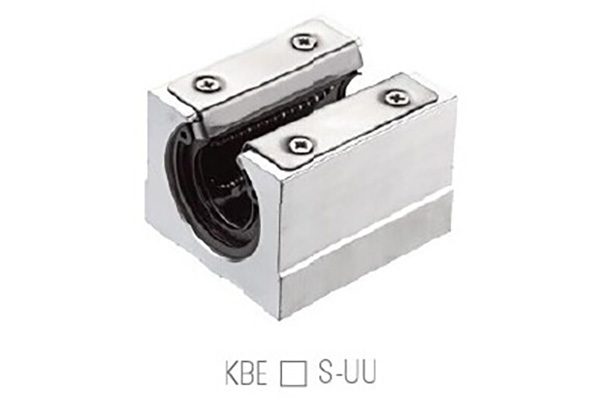

KBE…S-UU Linear Motion Slide Units

Part Number

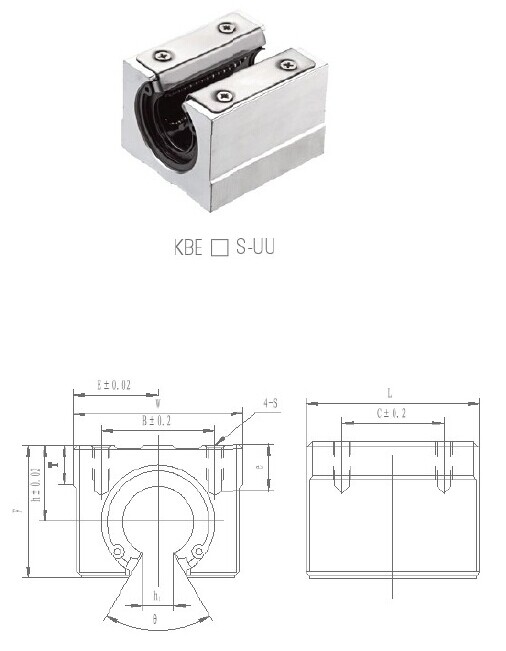

Main dimensions and Mounting dimensions (mm)

Basic Load Rating

Weight(g)

Seal Type

Shaft Diameter

h

D

W

L

F

T

h1

θ

B

C

S×e

dyn.c

stat.co

KBE16S-UU

16

20

22.5

45

45

33

9

10

80°

32

30

M5×12

774

1180

150

KBE20S-UU

20

23

24

48

50

39

11

10

60°

35

35

M6×12

882

1370

200

KBE25S-UU

25

27

30

60

65

47

14

11.5

60°

40

40

M6×12

980

1570

450

KBE30S-UU

30

33

35

70

70

56

15

14

60°

50

50

M8×18

1570

2740

630

KBE40S-UU

40

42

45

90

90

72

20

19

60°

65

65

M10×20

2160

4020

1330

KBE50S-UU

50

53

60

120

110

92

25

23

60°

94

80

M10×20

3820

7940

3000
