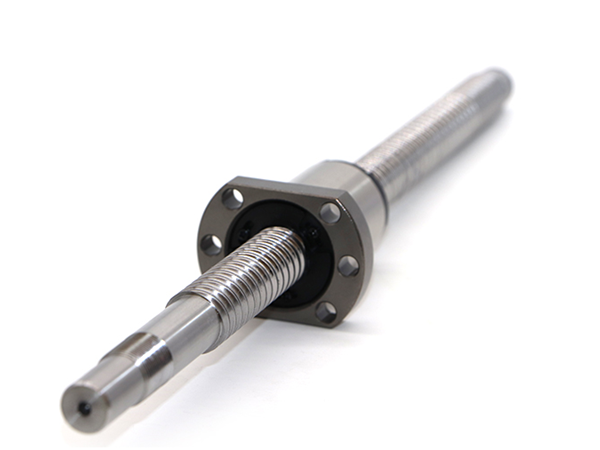

Flange Nut Ball Screw TBI SFU01204-4 CNC Machine Ballscrew

FLANGE NUT BALL SCREW TBI SFU01204-4 SFU1204 BALLSCREW

APPLICATION AREAS OF SFU BALL SCREW

Delicate application in industrial application, machine tool and automation application.



Model Number: SFU01204-4
Diameter : 12mm Lead: 4mm Length of Screw: 10mm-4000mm
1pcs ball nut install in 1pcs Screw as one set
Accuracy Grade: C7,C5,C3
Quality Standard: ISO9001
Place of Origin: Taiwan, China

PRODUCT DESCRIPTION
  • Product Name: Flange Nut Ball Screw TBI SFU01204-4 CNC Machine Ballscrew
  • Model : SFU01204-4
  • Brand: TBI
  • Structure: Ball Type
  • Screw Lenght: 10mm-4000mm
  • Minimum Quantity: 1 piece ball nut and 1 pc Screw
  • Grade: C7,C5,C3
  • Preload:P0-P3
  • Lubrication:Grease,Oil
  • Material:S55C

TBI Ball screw is a mechanical linear actuator that translates rotational motion to linear motion with littlce friction, A threaded shaft provides a helical raceway for ball bearings which act as a precision screws, As well as being able to apply or withstand high thrust loads, they can do so with min internal friction, and they are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. They ball assembly acts as the nut while the threaded shaft is the screw, In contrast to convessary leadscrews, ball screws tend to be rather bulky, Due to the need to have a mechanism to re-circulate the balls.

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

FEATURE:

Welcome to consult: TBI Flange Nut Ball Screw TBI SFU01204-4 CNC Machine Ballscrews

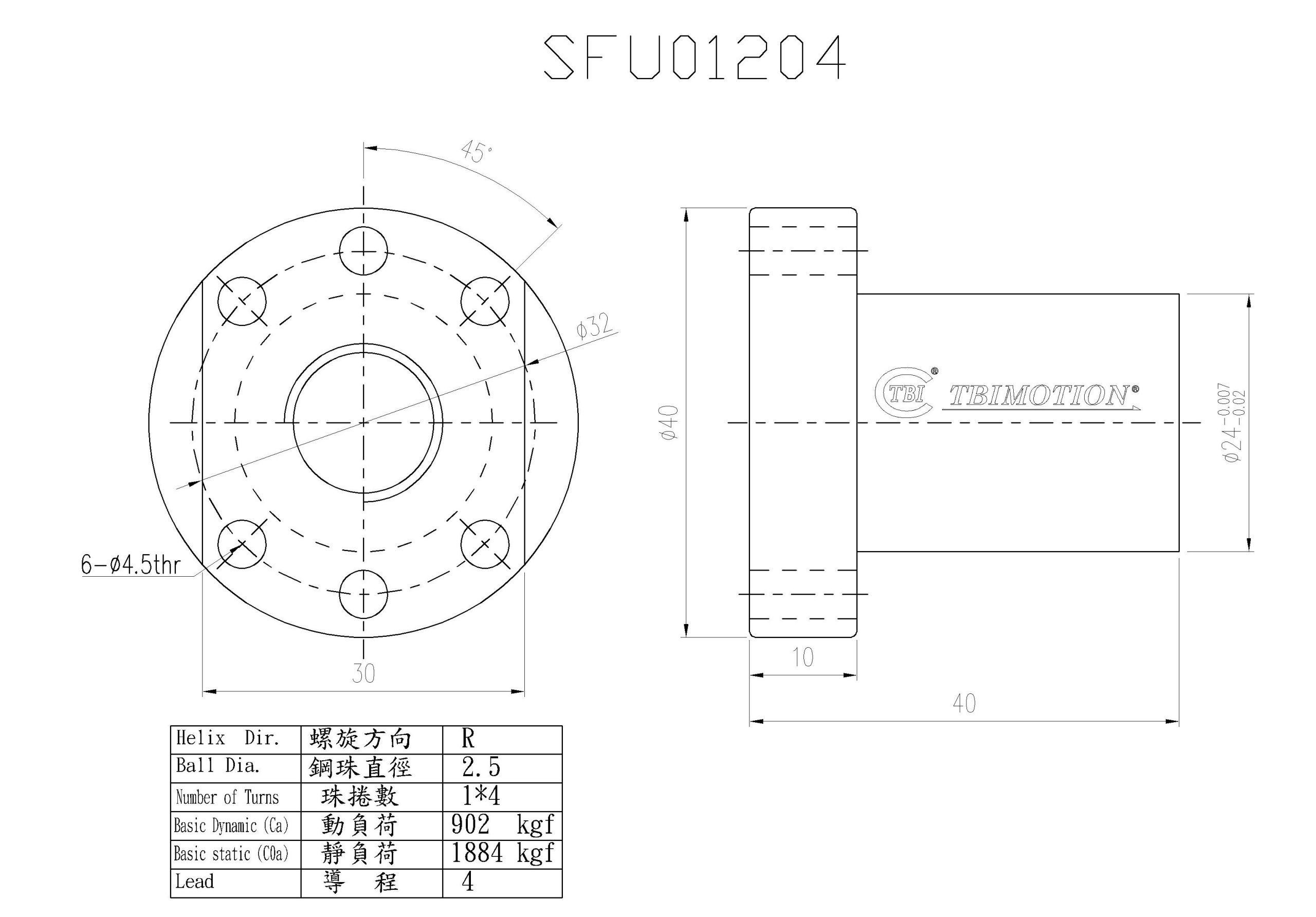

Dimensional drawing
