BALL SCREW NUT TBI SFNU SERIES BALLSCREW SFNU04010-4

TBI BALL SCREW NUT SFNU04010-4

APPLICATION AREAS OF SFNU04010-4 BALL SCREW NUT

Material handling machinery, automotive industry, dispensers, screw machines, welding machines, packaging machinery, textile machinery, etc.



Model Number: SFNU04010-4
Diameter : 40mm Lead: 10mm Length of Screw: 10mm-4000mm
1pcs ball nut install in 1pcs Screw as one set
Accuracy Grade: C7,C5,C3
Quality Standard: ISO9001
Place of Origin: Taiwan, China

PRODUCT DESCRIPTION
  • Product Name: 40mm TBI Ball Screw SFNU04010-4 BallScrew
  • Model : SFNU04010-4
  • Brand: TBI
  • Structure: Ball Type
  • Screw Lenght: 10mm-4000mm
  • Minimum Quantity: 1 piece ball nut and 1 pc Screw
  • Grade: C7,C5,C3
  • Preload:P0-P3
  • Lubrication:Grease,Oil
  • Material:S55C

TBI Ball screw is a mechanical linear actuator that translates rotational motion to linear motion with littlce friction, A threaded shaft provides a helical raceway for ball bearings which act as a precision screws, As well as being able to apply or withstand high thrust loads, they can do so with min internal friction, and they are made to close tolerances and are therefore suitable for use in situations in which high precision is necessary. They ball assembly acts as the nut while the threaded shaft is the screw, In contrast to convessary leadscrews, ball screws tend to be rather bulky, Due to the need to have a mechanism to re-circulate the balls.

TBI MOTION has very stringent quality control standards covering every production process. With proper lubrication and use, trouble-free operation for an extended period of time is possible.the high efficiency of ball screws is vastly superior to conventional screws. The torque required is less than 30%. Linear motion can be easily changed from rotary motion. TBI ball screw has high Durability,High Reliability,Smooth Operation,High Rigidity and Preload characteristic.

SFU AND SFK series delivers high smoothness, high rigidity and high durability. With strong dust-proof design, SFK series prevents abnormal chips getting into the nut extending service life, making SFK series applicable to contaminative environment.





ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior. We pay more attention to before-sale, in-sale, after -sales service and manufacturer with large stock & short delivery.

FEATURE:

Welcome to consult: 40mm TBI Ball Screw SFNU04010-4 BallScrew SFNU4010

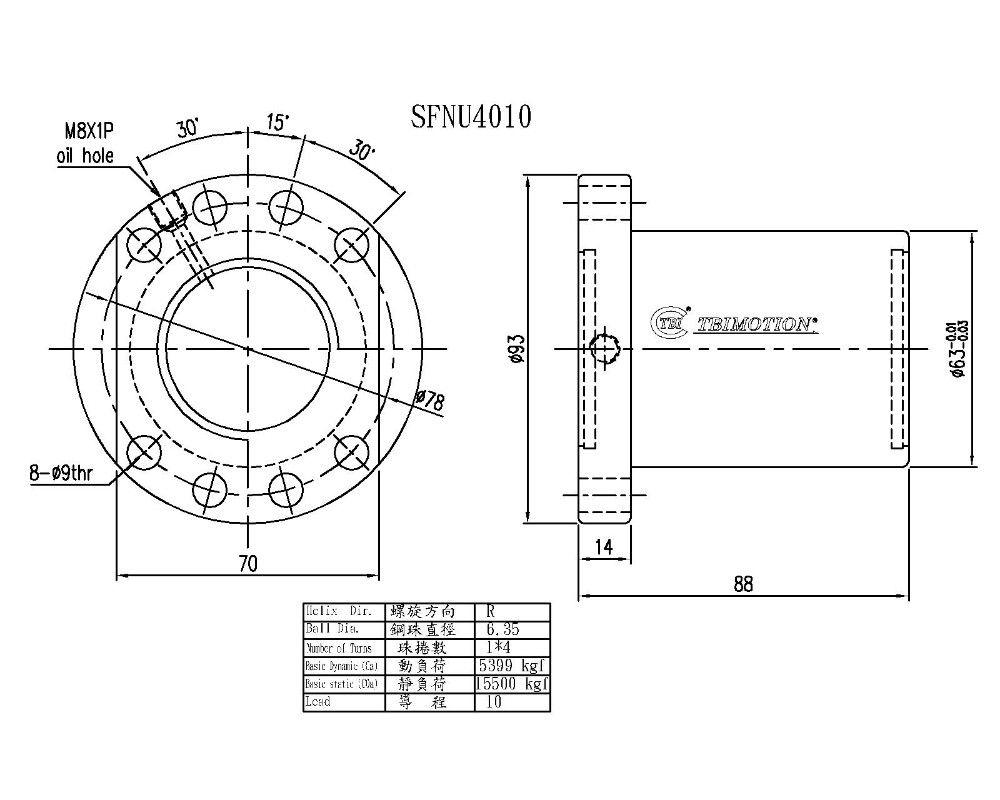

Dimensional drawing
