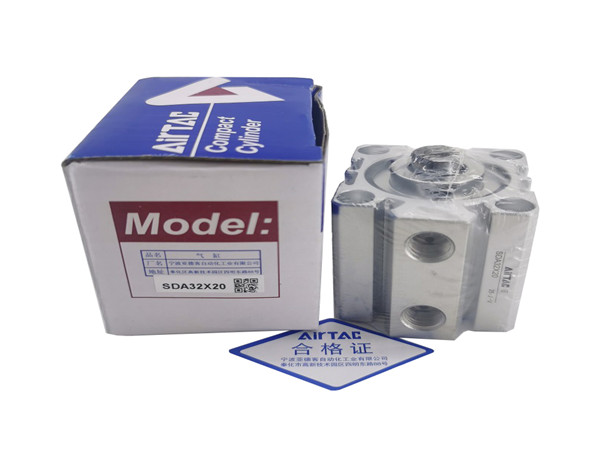

Airtac SDA Compact Air Cylinder SDA32X10

Airtac Type SDA Series Compact Cylinder features:

1、Manufactured by AIrtac
2、Riveted structure is adopted to connect the cylinder body and back cover, and piston and
piston rod to make it compact and reliable.
3、The inner diameter of the body is treated with rolling followed by the treatment of hard
anodizing, forming an excellent abrasion resistance and durability:
4、The seal of piston adopts heterogeneous two-way seal structure. lt has compact
dimension and the function of oil reservation;
5、Compact structure can effectively save installation space:
6、There are magnetic switch slots around the cylinder body, which is convenient to instal
sensor switch:
7、Mounting accessories with various specifications are optional

BASIC PARAMETERS

Key points of SDA Compact Cylinder:
1.SDA Series Magnetic Pneumatic Cylidners .
2.Compact design.
3.Bore size(mm): 12, 16, 20, 25, 32, 40, 50, 63, 80, 100.
4.Double acting, Single/Double rod
5.Single acting, Single rod, Spring return/extend.
6.Rubber bumper is standard.
7.Built-in magnet is optional.
8.Cylinder kits, barrel, piston is available.

ARESWIN technical team provides one-to-one tailor-made models to help you save time and make the products superior.

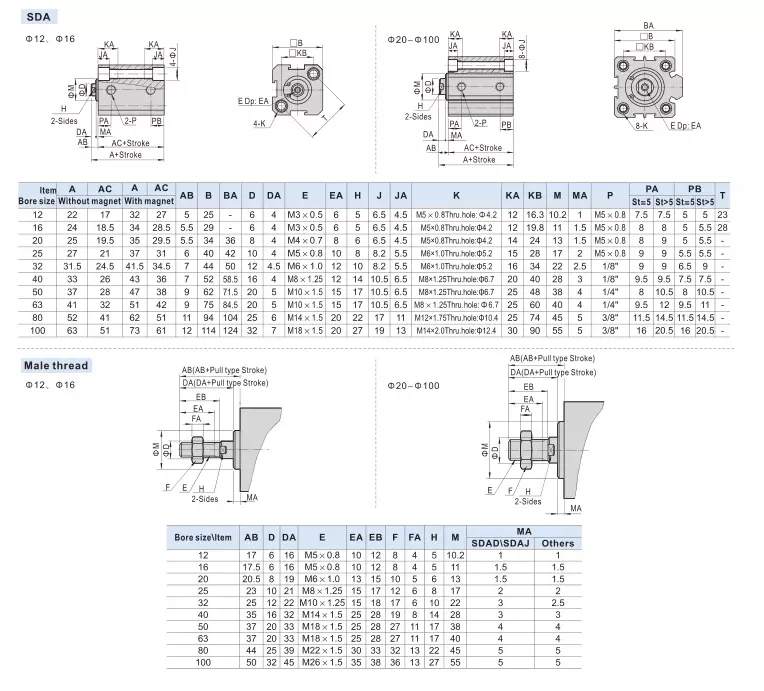

Dimensional drawing
